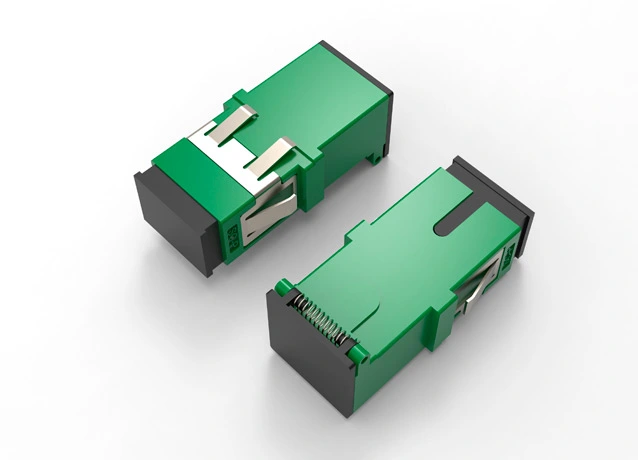

SC-SIM-OS SC/APC Simplex Fiber Adapter, built-in anti-sway latch, with up/down flip dust cap
Anti-sway latch locks connector to eliminate loose displacement;Up/down flip dust cap provides automatic protection when port is idle, avoiding dust contamination;
Stabilizes link loss, reduces failure risks caused by endface contamination, and extends service life of equipment ports and links
Three-way fastening adaptive shrapnel design prevents shaking.
Integrated high-strength shell.
Equipped with Clamshell Dust Cap.
| Product Type | SC/APC Simplex Fiber Optic Adapter |
| Structure Type | Flangeless |
| Applicable Fiber | SM |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥60 dB |
| Repeatability | ≤0.1 dB |
| Structure | With up/down flip dust cap, built-in anti-sway latch |
| Mating Cycles | ≥1000 times |
| Operating Temperature | -40℃ ~ +85℃ |
| Compliance Standards | IEC 61754-4, TIA/EIA-568-C.3 |
