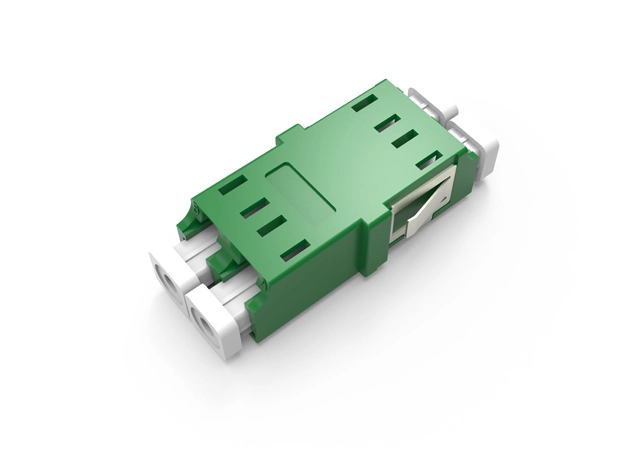

LC-DUP LC APC Duplex Bidirectional Flangeless Adapter with Anti-Vibration Latch
LC duplex APC (green) polish, flangeless panel mount, bidirectional transmission, built-in anti-vibration latch
High return loss with APC polish, bidirectional design for duplex links, flangeless form factor fits high-density panels, anti-vibration latch prevents connector loosening
Low insertion loss and high return loss ensure stable signals, ideal for high-density cabling, reduces connection failure risk, improves link reliability
Three-way fastening adaptive shrapnel design prevents shaking.
Integrated high-strength shell.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Low insertion loss.
Compliant with relevant standards such as IEC61754 and YDT 1272, and 100% optical testing according to industrial standards to ensure reliability.
Product Name | LC-DUP LC APC Duplex Bidirectional Flangeless Adapter with Anti-Vibration Latch |
Model | LC-DUP |
Interface Type | LC Duplex |
Polishing Type | APC (Green) |
Anti-Vibration Design | Built-in anti-vibration latch to secure connectors against loosening |
（IL） Insertion Loss | ≤0.2dB typical |
（RL） Return Loss | ≥60dB (APC) |
Compatible Fiber | SM fiber |
Mounting Type | Flangeless panel mount |
Durability | ≥1000 matings |
Operating Temperature | -40℃ ~ +85℃ |
Application | Data centers, enterprise networks, telecom rooms, FTTX |
