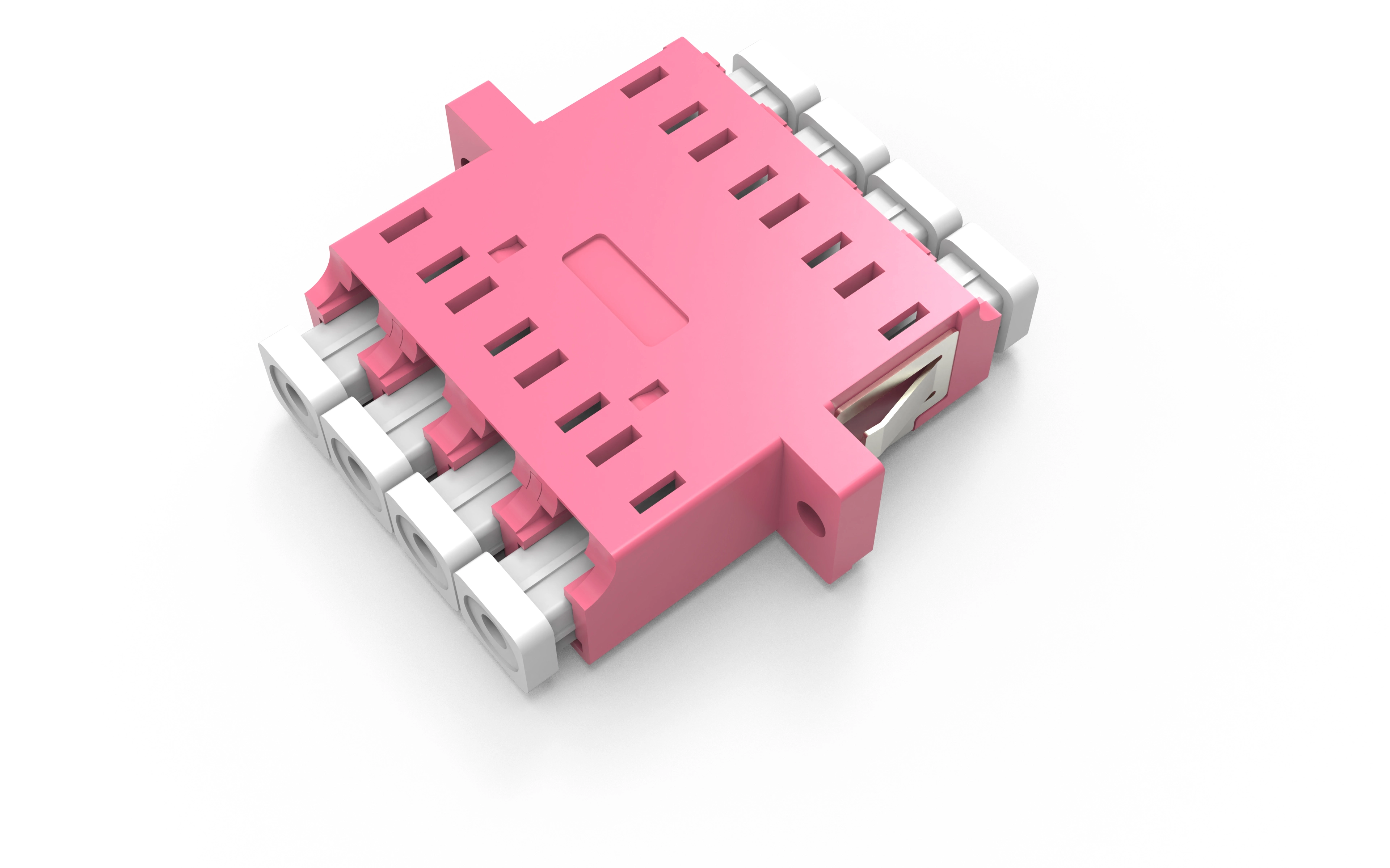

Specified as LC-QUAD quad-port type with original anti-shake buckle design, OM4 multimode magenta high-temperature resistant plastic housing in integrated 4-port structure, side mounting flange holes for standard 175 keystone panel installation. Equipped with high-precision ceramic sleeve for low insertion loss and excellent return loss, perfectly matched with OM4 multimode fiber to support stable 40G/100G high-speed transmission. Exclusive locking buckle fixes adapter tightly onto panel to avoid displacement during patch cord plugging & unplugging. Ideal for high-density ODF cabling in data center; 4-in-1 layout saves panel slots to increase rack port density and reduce maintenance link failure.
| Product Spec | LC-QUAD Quad 4-port integrated structure |
| Exclusive Feature | Original anti-shake locking buckle design |
| Matching Fiber | OM4 Multimode optical fiber |
| Polish Type | UPC end face standard |
| Sleeve Material | High precision ceramic sleeve |
| Typical Insertion Loss | ≤0.2dB per single port |
| Typical Return Loss | ≥55dB(UPC finished port) |
| Housing Color | Magenta (standard OM4 industry color) |
| Installation Method | Dual fixed mounting: side flange screw fixation + anti-shake buckle snap-in for 175-type standard keystone panel |
| Operating Temp | -40℃ ~ +75℃ |
| Compliance Standard | Conforms to TIA/EIA-568.3-D, IEC61300, IEC60793, consistent with Corning & Commscope international component specifications |
