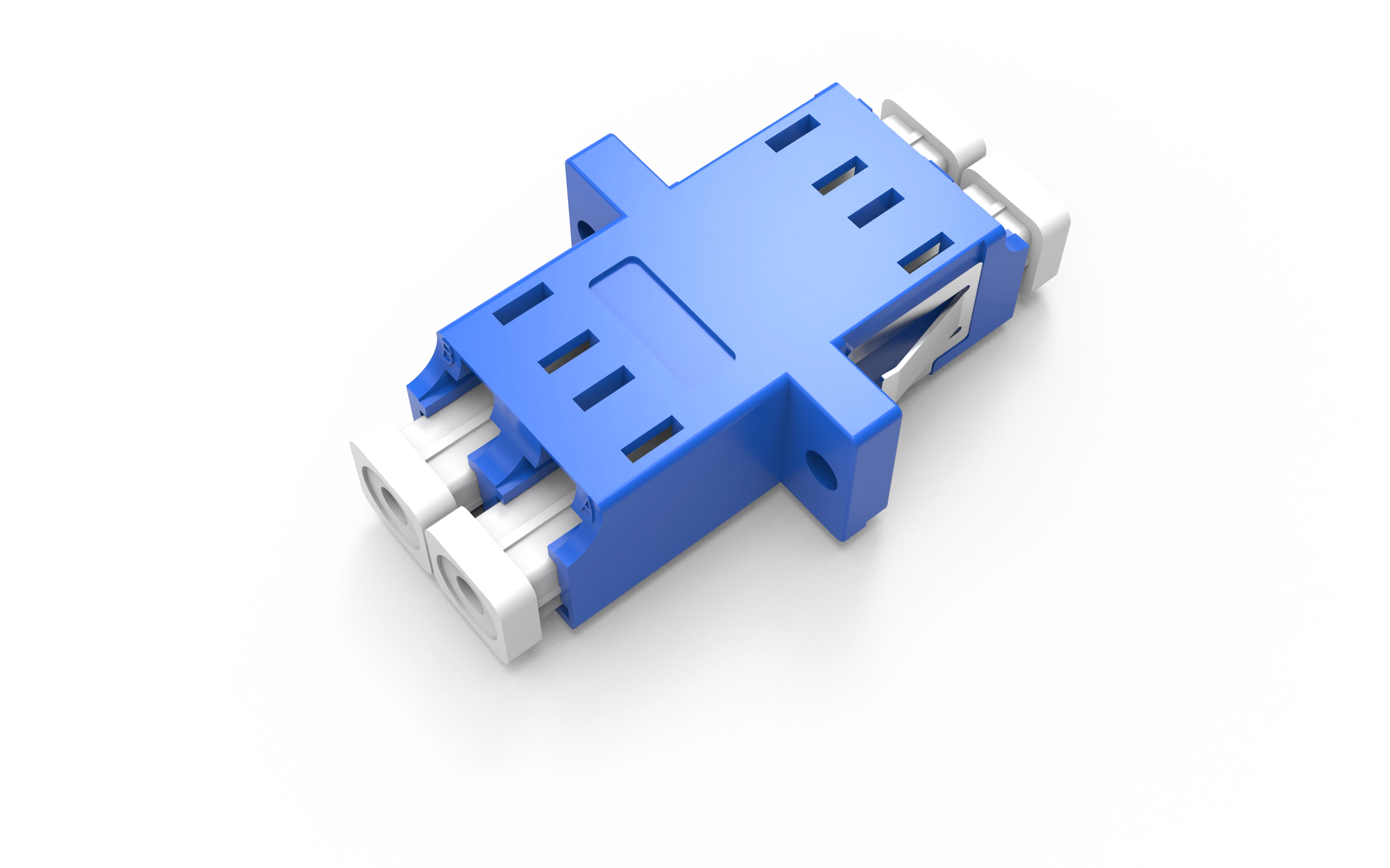

LC-DUP-E LC PC Duplex Bidirectional Flange Adapter with Anti-Vibration Latch
LC duplex UPC (blue) polish, flange panel mount, bidirectional transmission, built-in anti-vibration latch
High return loss with UPC polish, bidirectional design for duplex links, flange form factor fits high-density panels, anti-vibration latch prevents connector loosening
Low insertion loss and high return loss ensure stable signals, ideal for high-density cabling, reduces connection failure risk, improves link reliability
Product Name | LC-DUP LC APC Duplex Bidirectional Flange Adapter with Anti-Vibration Latch |
Model | LC-DUP-E |
Interface Type | LC Duplex |
Polishing Type | UPC (Blue) |
Anti-Vibration Design | Built-in anti-vibration latch to secure connectors against loosening |
（IL） Insertion Loss | ≤0.2dB typical |
（RL） Return Loss | ≥50dB (UPC) |
Compatible Fiber | SM fiber |
Mounting Type | Flange panel mount |
Durability | ≥1000 matings |
Operating Temperature | -40℃ ~ +85℃ |
Application | Data centers, enterprise networks, telecom rooms, FTTX |
