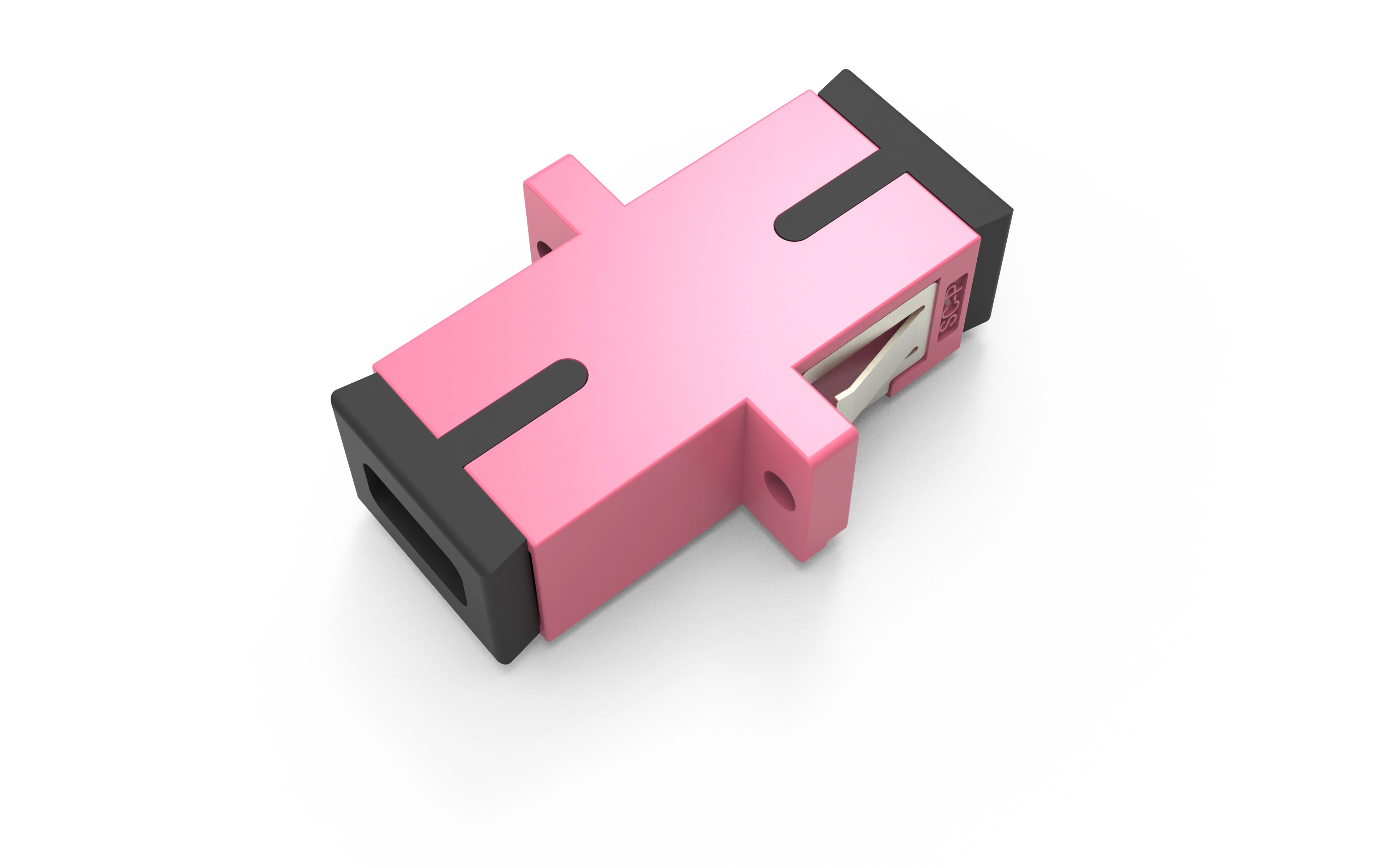

Model: SCPC-SIM-E, OM4 multimode SC simplex flange fiber adapter with industry standard magenta housing and side flange fixing holes. Built-in exclusive anti-shake spring buckle firmly locks SC plug to prevent connector offset caused by plugging, equipment vibration and cable pulling. Equipped with high-precision ceramic sleeve and PC polish end face for low insertion loss and superior return loss, perfectly matched with OM4 multimode fiber to support stable 10G/40G Ethernet transmission. Compatible with standard 175 keystone panel for high-density ODF distribution in data center; anti-loose buckle cuts down link failure from loose port and improves long-term cabling stability.
| Part Number | SCPC-SIM-E |
| Structure | Simplex single port with mounting flange + built-in anti-shake locking buckle |
| Fiber Grade | OM4 Multimode fiber |
| Polish Type | PC polish (SCPC) |
| Sleeve Material | High precision ceramic ferrule sleeve |
| Typical Insertion Loss | ≤0.2dB per port |
| Housing Color | Magenta (standard OM4 industry color marking) |
| Installation Method | Flange screw fixing + anti-shake buckle clamping for 175-type standard panel |
| Mating Durability | ≥1000 times plug/unplug cycle |
| Operating Temperature | -40℃ ~ +75℃ |
| Compliance Standard | Conforms to TIA/EIA568.3-D, IEC61300, IEC60793, consistent with mainstream global fiber adapter specifications |
