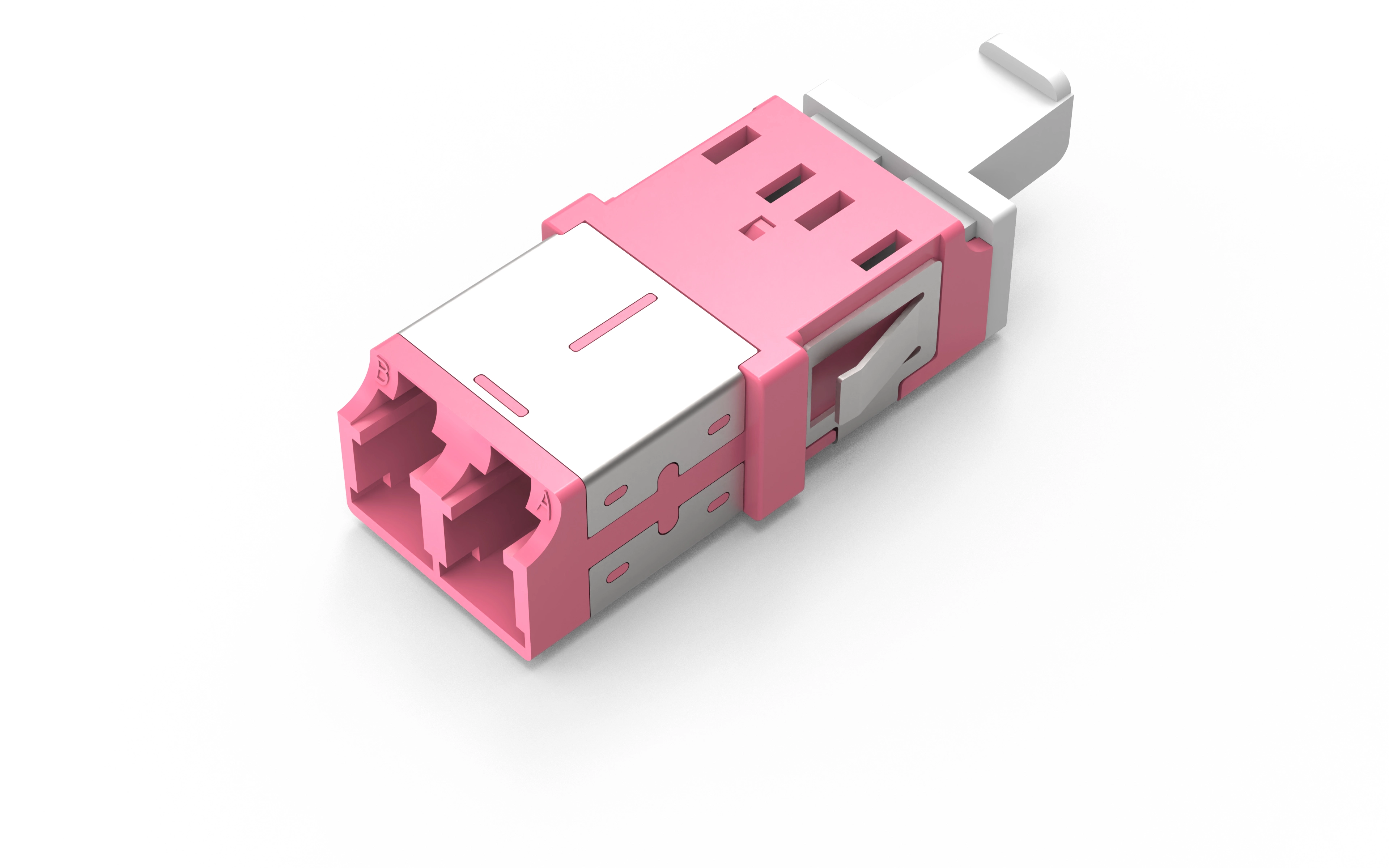

LC-DUP-IS LC Duplex Inner Shutter Adapter (OM4 Multimode)
LC duplex design, built-in inner safety shutter, OM4 magenta ceramic sleeve, flange mount with anti-vibration clip
Inner shutter protects personnel from laser exposure, flange clip secures connectors to prevent loosening, color-coded sleeve ensures multimode performance
SSafe and compliant for data center cabling, reduces laser injury risk, ensures stable high-density links, minimizes maintenance issues
Product Name | LC Duplex Inner Shutter Adapter (OM4 Multimode) |
Model | LC-DUP-IS |
Interface Type | LC Duplex |
Polishing Type | OM4(Magenta) |
Dust Protection | Built-in automatic dust shutter |
Anti-Vibration Design | Anti-vibration latch |
（IL） Insertion Loss | ≤0.2dB typical |
（RL） Return Loss | ≥35dB (APC) |
Compatible Fiber | OM4 fiber |
Mounting Type | Flangeless Mount |
Durability | ≥1000 matings |
Operating Temperature | -40℃ ~ +85℃ |
Application | Data centers, enterprise networks, telecom rooms, FTTX |
