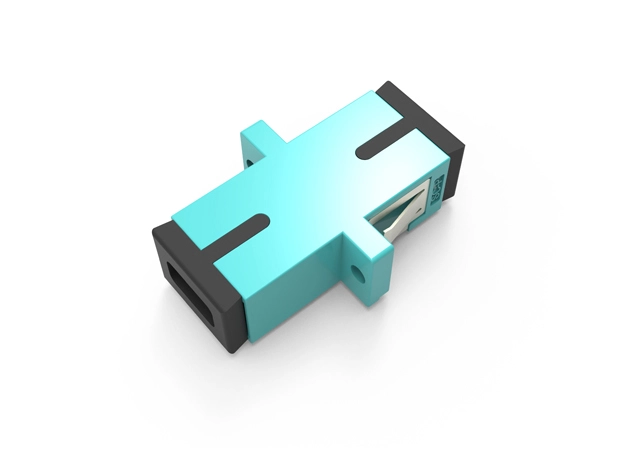

SC-SIM-E SC UPC OM3 Simplex Flange Adapter with built-in anti-sway latch
Anti-sway latch locks the connector to eliminate loose displacement; Flange design fits high-density cabling
Stabilizes link loss, improves long-term reliability, and reduces cabling costs in high-density scenarios
Three-way fastening adaptive shrapnel design prevents shaking.
Integrated high-strength shell.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Low insertion loss.
Compliant with relevant standards such as IEC61754 and YDT 1272, and 100% optical testing according to industrial standards to ensure reliability.
| Product Type | SC/UPC OM3 Simplex Fiber Optic Adapter |
| Structure Type | Flange |
| Applicable Fiber | OM3 |
| Insertion Loss | ≤0.2 dB |
| Return Loss | ≥35 dB |
| Repeatability | ≤0.1 dB |
| Anti-Sway Structure | Built-in elastic latch lock |
| Mating Cycles | ≥1000 times |
| Operating Temperature | -40℃ ~ +85℃ |
| Compliance Standards | IEC 61754-4, TIA/EIA-568-C.3 |
