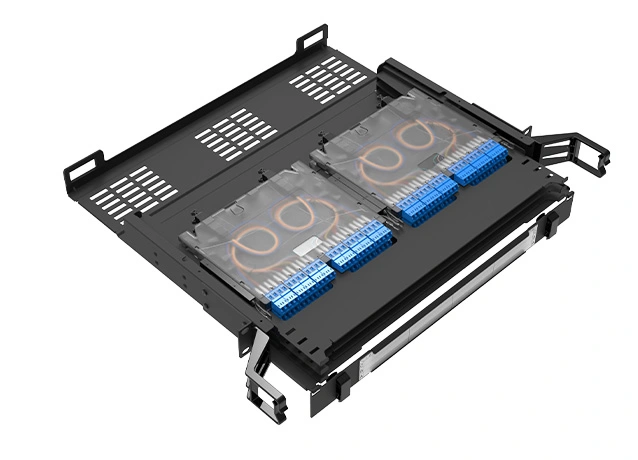

SP6M1 is standard 19-inch 1U high-density modular MPO fiber patch panel constructed from 1.5mm thick SPCC cold rolled steel. It can install up to 6pcs × 24-fiber pluggable MPO cassettes within single 1U space, reaching maximum 144-fiber capacity per 1U. Each cassette supports both factory pre-termination and field fiber splicing. Equipped with dual-side slide-out bracket for easy cassette pull-out maintenance and top ventilation slots for heat dissipation. Individual pluggable cassette allows flexible capacity expansion without full frame disassembly. Designed for high-density 40G/100G data center backbone cabling, pre-terminated cassettes remove on-site splicing work and save rack space efficiently.
High density application scenario.
MAX 144 Ports.
MPO pre-terminated & splicing function.
Double metal slide rails design for easy installation and maintenance.
Lightweight MpO cassette and splicing cassette are optional.
Electrostatic spraying coat(Standard black RAL9005, customized color is available).
Efficient fiber management and structural accessories.
| Model | SP6M1 |
| Dimension | Standard 19-inch width, 1U rack height |
| Frame Material | 1.5mm thick SPCC cold rolled steel sheet |
| Cassette Configuration | Max 6pcs cassettes per 1U, 24-fiber per cassette |
| Full Load Capacity | 6×24=144 fibers total per single 1U |
| Cassette Function | Dual use for MPO pre-termination & fiber fusion splicing |
| Structural Feature | Slide-out pull rail for cassette easy maintenance |
| Surface Treatment | Black anti-corrosion electrostatic powder coating |
| Typical Application | 40G/100G high density data center backbone cabling |
| Operating Temp | -40℃ ~ +75℃ |
| Compliance Standard | Conforms to TIA/EIA568.3-D, IEC60794, matching international data center patch panel industrial standardsConforms to TIA/EIA568.3-D, IEC60794, matching international data center patch panel industrial standards |
