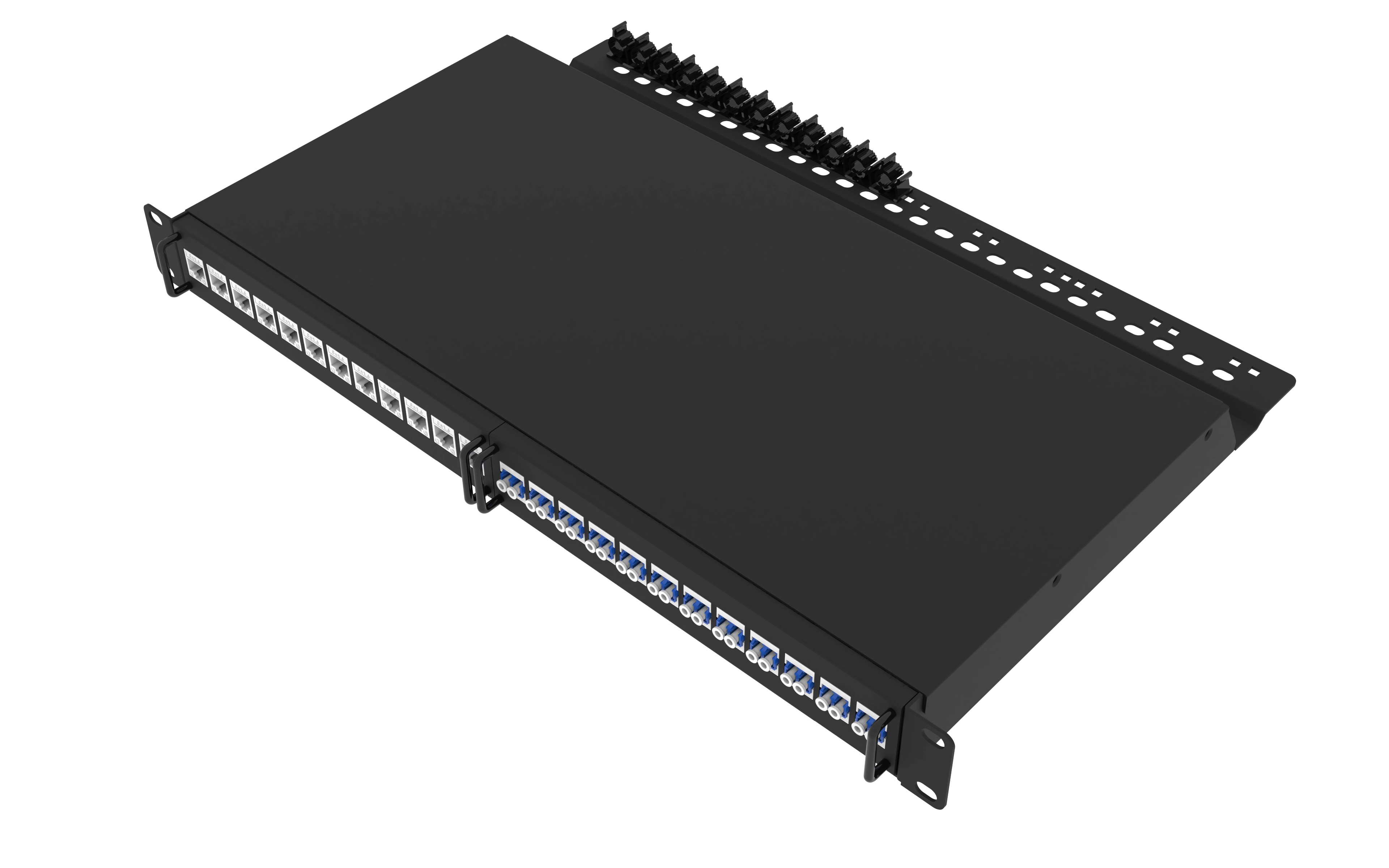

1U 19" standard rackmount fiber-optic copper cable type splice fiber patch panel, with a fixed design, supporting up to 24 LC duplex ports and a maximum capacity of 48 fibers, compatible with both fiber and copper cable management requirements.
It integrates fiber splicing and copper cable management functions in one compact unit; the rear cable management bar ensures organized routing for both fiber and copper cables, reducing clutter; fixed port configuration provides stable, low-loss connections for long-term use.
Ideal for mixed-media network environments, enterprise wiring closets, and small data centers requiring simultaneous fiber and copper termination; reduces equipment footprint and installation complexity, offering a cost-effective, all-in-one solution for hybrid network distribution.
| Model | FCP2-24 Fiber-optic Copper Cable Type Splice Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount, fixed design |
| Max Fiber Capacity | Up to 48 fibers |
| Port Type | Fixed LC duplex adapters |
| Cable Management | Integrated rear bar for fiber and copper cable routing |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.3dB (LC port) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant internal components (UL94 V-0) |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-4 / IEC 61300; Operating temperature: -10℃ ~ +60℃ |
| Operating temperature | -10℃ ~ +60℃ |
