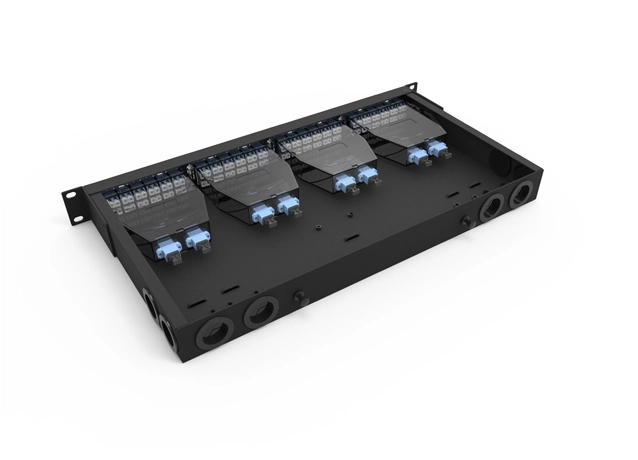

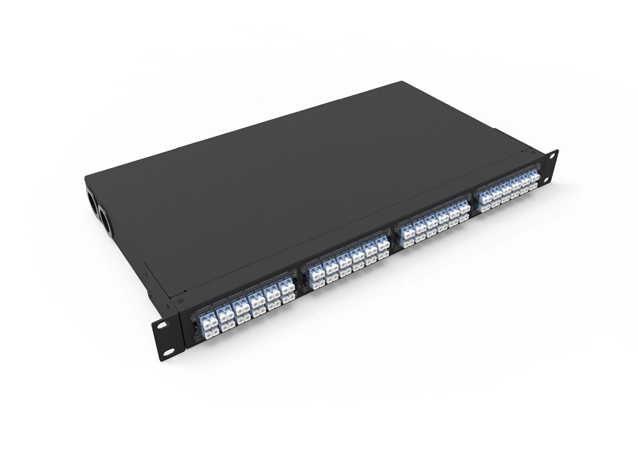

1U 19" standard rackmount high-density MPO modular fiber patch panel, supporting up to 4 MPO-to-LC modules, with a maximum capacity of 96 fibers. It features a compact design, built-in cable management, and compatibility with OM3/OM4 multimode and OS2 single-mode fibers.
High-density modular structure maximizes rack space utilization; supports flexible port configuration and on-demand expansion; integrated cable management ensures compliant fiber bend radii and reduces signal loss.
Optimized for enterprise data centers and high-speed network environments, it reduces cabinet footprint and cabling complexity, improves operational efficiency, and provides reliable, scalable fiber distribution solutions.
| Model | FM4M1 High Density MPO Modular Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount |
| Module Configuration | 4 MPO-to-LC duplex modules |
| Max Fiber Capacity | Up to 96 fibers per 1U unit |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Port Type | MPO female to LC duplex |
| Insertion Loss | ≤0.3dB (LC port), ≤0.75dB (MPO link) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant internal components (UL94 V-0) |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-7 / IEC 61300; |
| Operating temperature | -10℃ ~ +60℃ |
