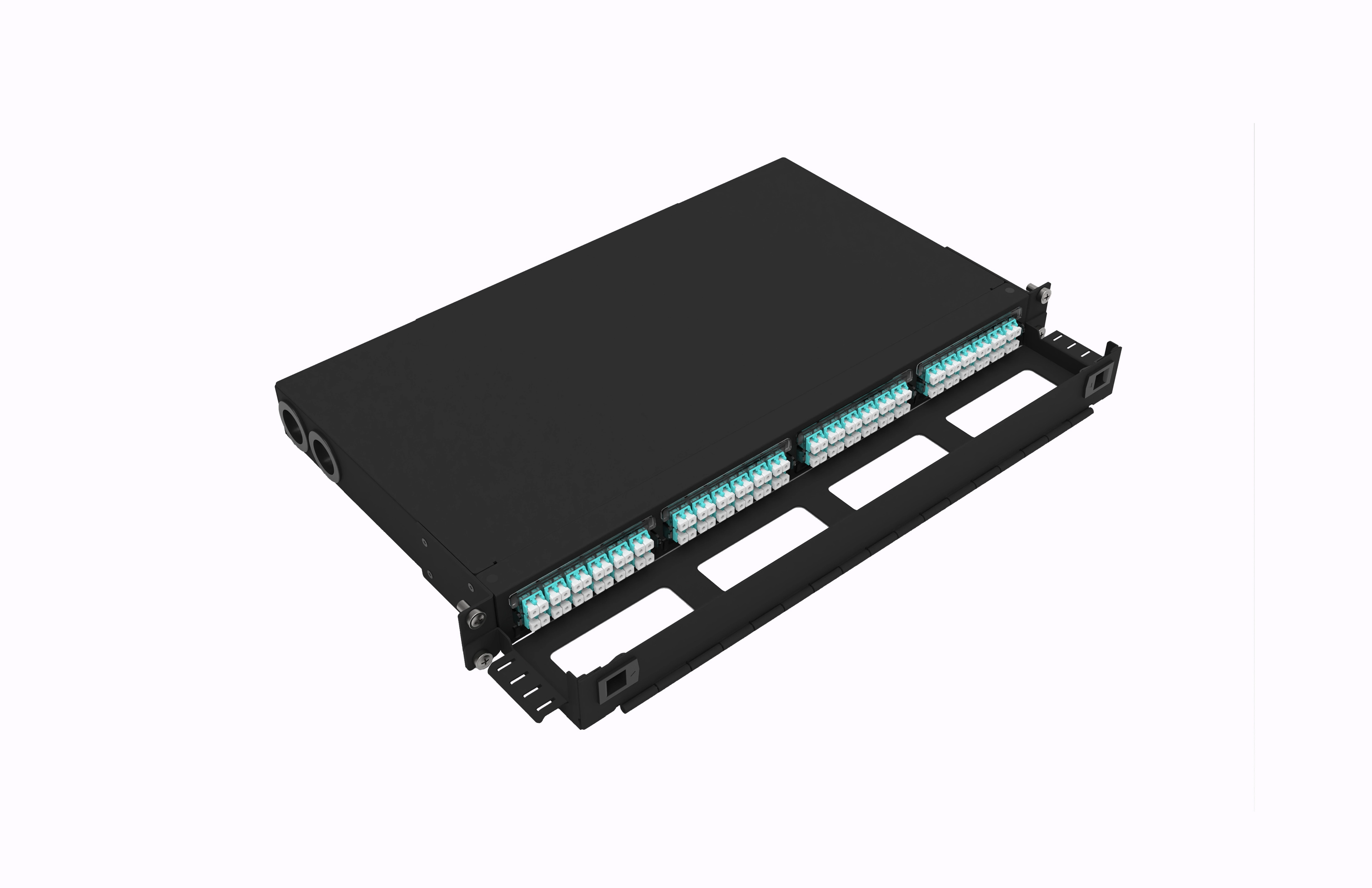

1U 19" standard rackmount splice fiber patch panel, supporting modular LC/SC/MPO adapter installation, with built-in splice trays for fiber splicing, compatible with OM3/OM4/OS2 fibers.
Combines splicing and patching functions in one unit, saving rack space; modular adapter slots support mixed port configurations; optimized internal layout ensures proper fiber bend radius.
Ideal for enterprise and data center environments requiring on-site splicing; reduces equipment count and installation complexity; provides a compact, reliable solution for fiber termination and distribution.
| Model | FM4M1 High Density Splice Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount |
| Splice Capacity | Supports up to 4 splice trays, max 96 fibers |
| Port Compatibility | LC/SC/MPO adapter modular slots |
| Fiber Type | OM3/OM4 multimode, OS2 single-mode compatible |
| Insertion Loss | ≤0.3dB (LC/SC port), ≤0.75dB (MPO link) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant splice trays (UL94 V-0) |
| Operating Temperature | -10℃ ~ +60℃; |
| Storage Temperature | -40℃ ~ +85℃ |
| Compliance | TIA-568-C.3, IEC 61754-7, IEC 61300-3-4, IEC 61300-2 |
