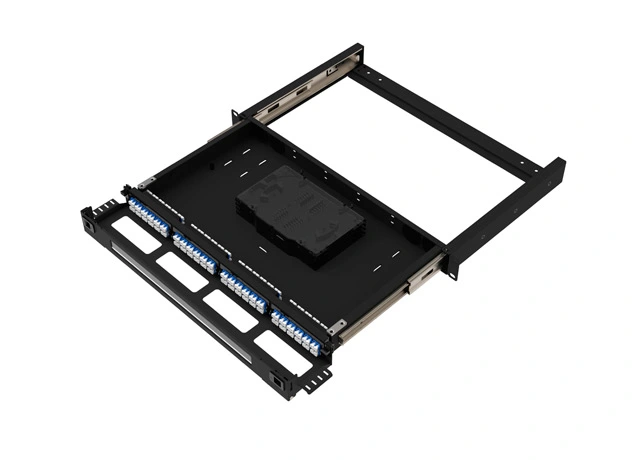

1U 19" standard rackmount splice fiber patch panel with sliding tray design, supporting built-in fiber splicing trays and modular LC/SC duplex adapters, with a maximum capacity of 96 fibers, compatible with OM3/OM4 multimode and OS2 single-mode fibers.
Sliding tray enables easy access for splicing and maintenance; combines splicing and patching functions in one unit, saving rack space; optimized internal layout ensures proper fiber bend radius and organized cable management.
Ideal for enterprise networks, campus cabling, and small-to-medium data centers requiring on-site fiber termination; reduces equipment count and installation complexity, offering a cost-effective, reliable solution for fiber distribution and management.
Metal Slide rails.
MAX 96F in 1U.
Electrostatic spraying coat(Standard black RAL9005, customized color is available).
Efficient fiber management and structural accessories.
| Model | SF4H1 Splice Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount |
| Max Fiber Capacity | Up to 96 fibers |
| Port Type | Modular LC/SC duplex adapters |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.3dB (LC/SC port) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant splice trays (UL94 V-0) |
| Operating Temperature | -10℃ ~ +60℃; |
| Storage Temperature | -40℃ ~ +85℃ |
| Compliance | TIA-568-C.3, IEC 61754-4, IEC 61300-3-4, IEC 61300-2 |
