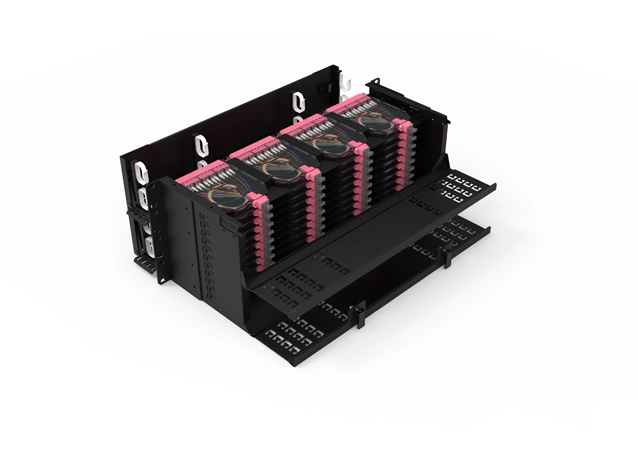

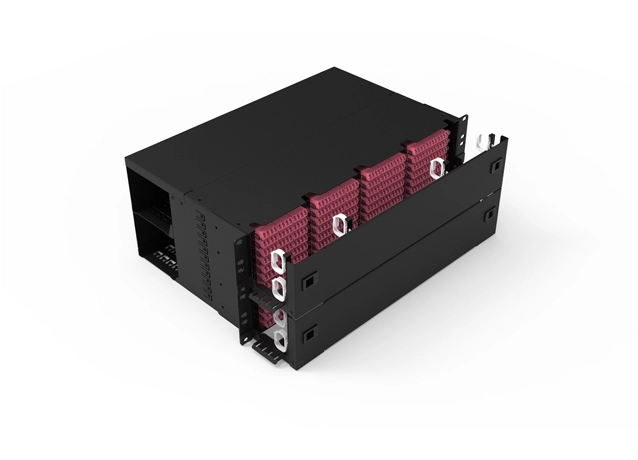

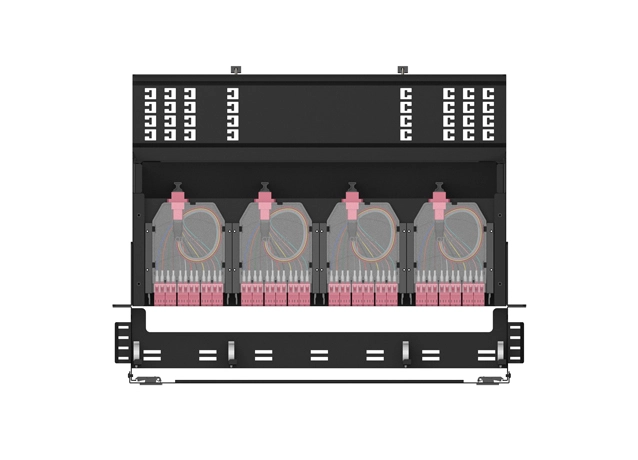

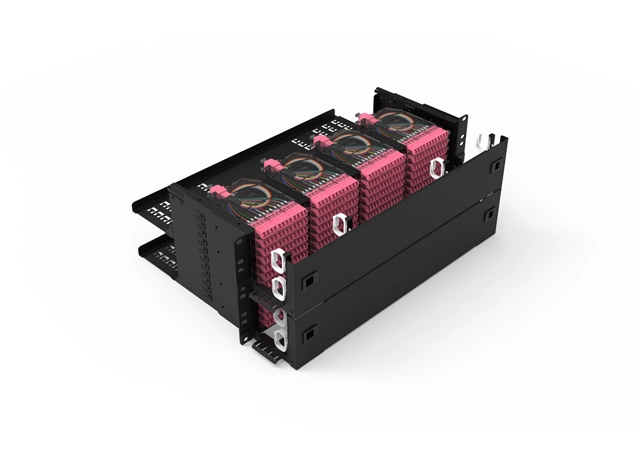

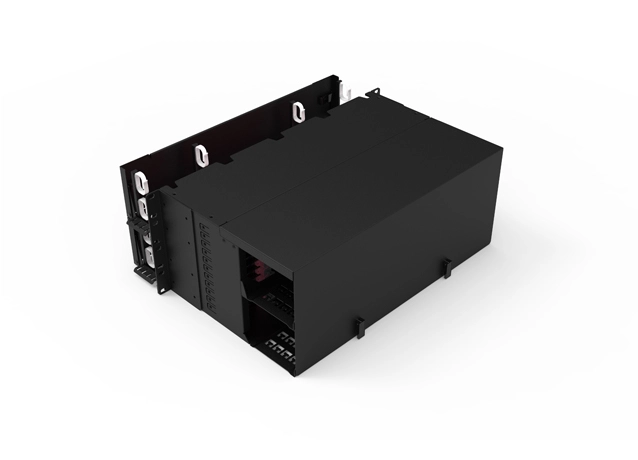

4U 19” standard rackmount modular panel with 4×48-fiber MPO modules, supporting up to 576 fibers total. It features sliding maintenance trays, integrated cable managers, and compatibility with OM3/OM4/OS2 fibers.
Ultra-high fiber density maximizes rack space efficiency and reduces cabling costs; modular design enables on-demand expansion; sliding trays simplify maintenance, while cable managers ensure compliant bend radii to minimize signal loss.
Optimized for high-density data centers and core network environments, it reduces cabinet footprint and upgrade costs, improves O&M efficiency, and ensures long-term stable link transmission for high-speed networks.
| Model | SP48M4 High Density MPO Modular Fiber Patch Panel |
| Form Factor | 4U, 19" standard rackmount |
| Module Configuration | 4 independent MPO modules, 48 fibers per module |
| Max Fiber Capacity | Up to 576 fibers per 2U unit |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Port Type | MPO female to LC duplex |
| Insertion Loss | ≤0.3dB (LC port), ≤0.75dB (MPO link) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, UL94 V-0 flame-retardant trays |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-7 / IEC 61300; |
| Operating temperature | -10℃ ~ +60℃ |
