Modular high-density design, MPO-LC transition, 19" standard rackmount, sliding maintenance tray, front/rear cable management, OM3/OM4/OS2 fiber compatible
Ultra-high fiber density per 1U/2U to save rack space; modular trays for on-demand scaling; sliding design for easy maintenance; cable managers ensure compliant fiber bend radius
Reduces data center cabinet costs and cabling footprint; adapts to business expansion without full rewiring; improves O&M efficiency and fault troubleshooting; ensures long-term stable transmission compliant with industry standards

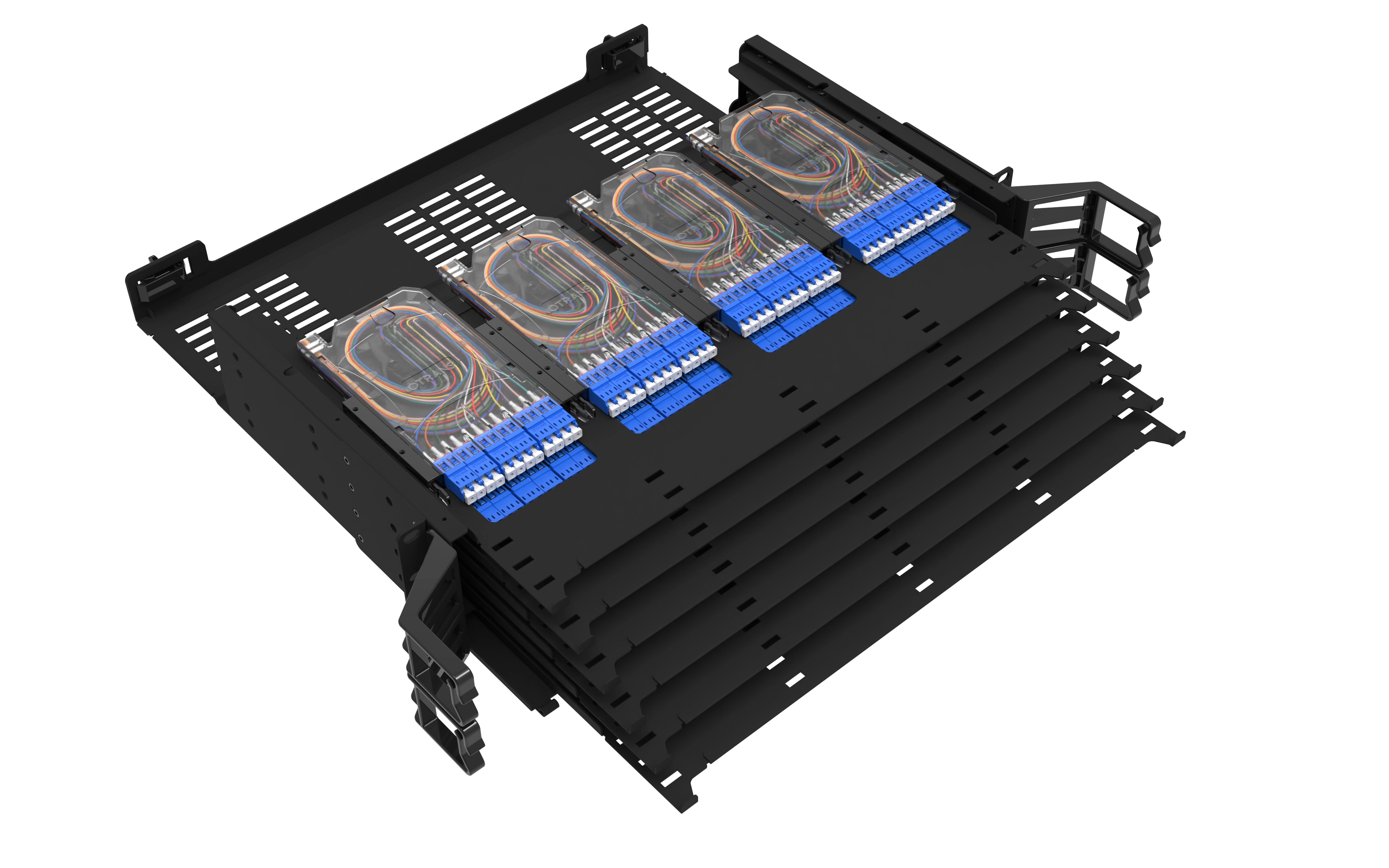

| Model | SP24M2 High-Density MPO Modular Fiber Patch Panel |
| Rack Standard | 19" standard, supports 1U/2U installation |
| Port Configuration | MPO female to LC duplex, 24/48 fibers per tray |
| Max Density | 4 trays per 2U unit, up to 192/288 fibers |
| Fiber Type | OM3/OM4 multimode & OS2 single-mode compatible |
| Insertion Loss | ≤0.3dB (LC port), ≤0.75dB (MPO link) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel with powder coating, flame-retardant ABS tray (UL94 V-0) |
| Operating Temperature | -10℃ ~ +60℃; |
| Storage Temperature | -40℃ ~ +85℃ |
| Compliance | TIA-568-C.3, IEC 61754-7, IEC 61300-3-4, IEC 61300-2 |
