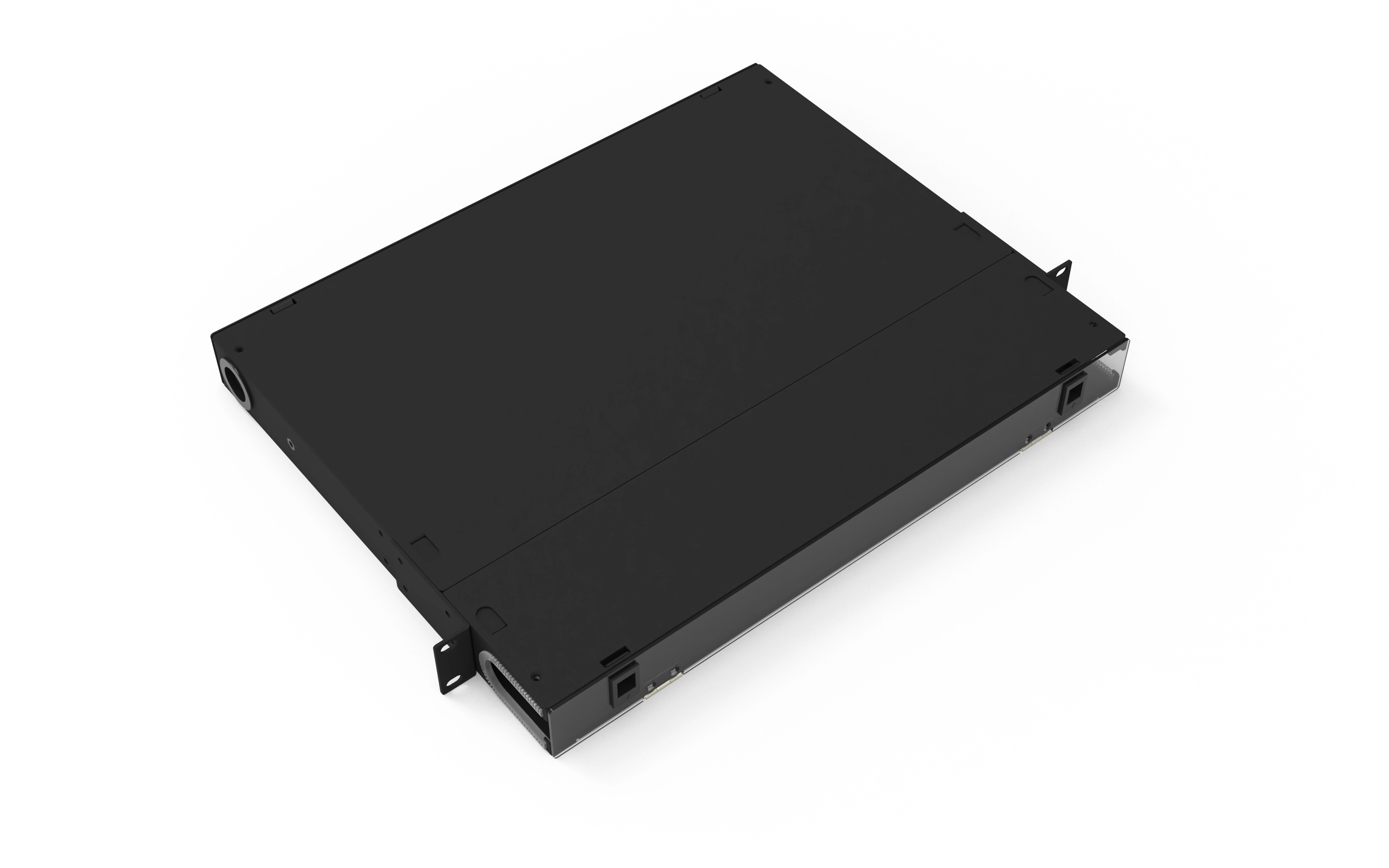

1U 19" standard rackmount slide-out splice fiber patch panel, with built-in splicing trays for on-site fiber termination, supporting up to 72 fibers, compatible with OM3/OM4 multimode and OS2 single-mode fibers.
Slide-out rail design enables full access to internal splice trays for easy maintenance and reconfiguration; combines splicing and patching functions in one compact unit, saving rack space; optimized internal layout ensures proper fiber bend radius and organized cable management.
Ideal for enterprise networks, campus cabling, and small-to-medium data centers requiring on-site fiber splicing; reduces equipment count and installation complexity, offering a cost-effective, reliable solution for fiber distribution and management.
| Model | SE3G1 Splice Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount with slide-out rail |
| Max Fiber Capacity | Up to 72 fibers |
| Splice Configuration | Built-in fiber splice trays for on-site termination |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Port Type | Compatible with LC/SC duplex adapters |
| Insertion Loss | ≤0.3dB (LC/SC port) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant splice trays (UL94 V-0) |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-4 / IEC 61300; |
| Operating temperature | -10℃ ~ +60℃ |
