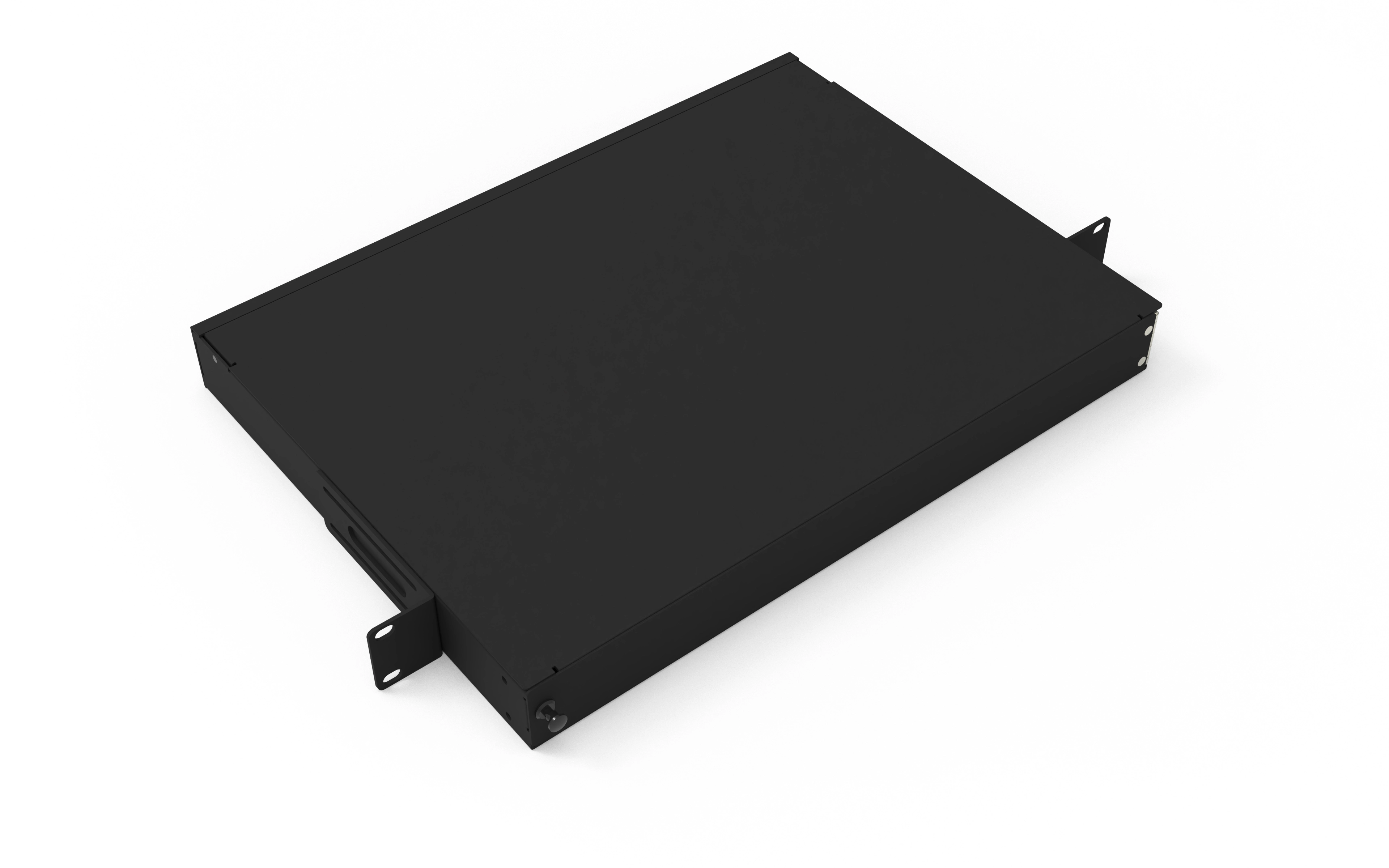

U 19" standard rackmount rotary splice fiber patch panel, with a rotating tray design for full internal access, supporting built-in fiber splicing trays and modular LC/SC adapters, compatible with OM3/OM4 multimode and OS2 single-mode fibers.
The rotating tray enables easy access to splice trays for maintenance and reconfiguration without removing the panel from the rack; combines splicing and patching functions in one compact unit, saving rack space; optimized internal layout ensures proper fiber bend radius and organized cable management.
Ideal for enterprise networks, campus cabling, and small-to-medium data centers requiring on-site fiber termination; reduces equipment count and installation complexity, offering a reliable, user-friendly solution for fiber distribution and management.
| Model | RR2C1 Splice Fiber Patch Panel |
| Form Factor | 1U, 19" standard rackmount with rotary tray design |
| Max Fiber Capacity | Up to 48 fibers |
| Splice Configuration | Built-in fiber splice trays for on-site termination |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Port Type | Modular LC/SC duplex adapters |
| Insertion Loss | ≤0.3dB (LC/SC port) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Cold-rolled steel housing, flame-retardant splice trays (UL94 V-0) |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-4 / IEC 61300; |
| Operating temperature | -10℃ ~ +60℃ |
