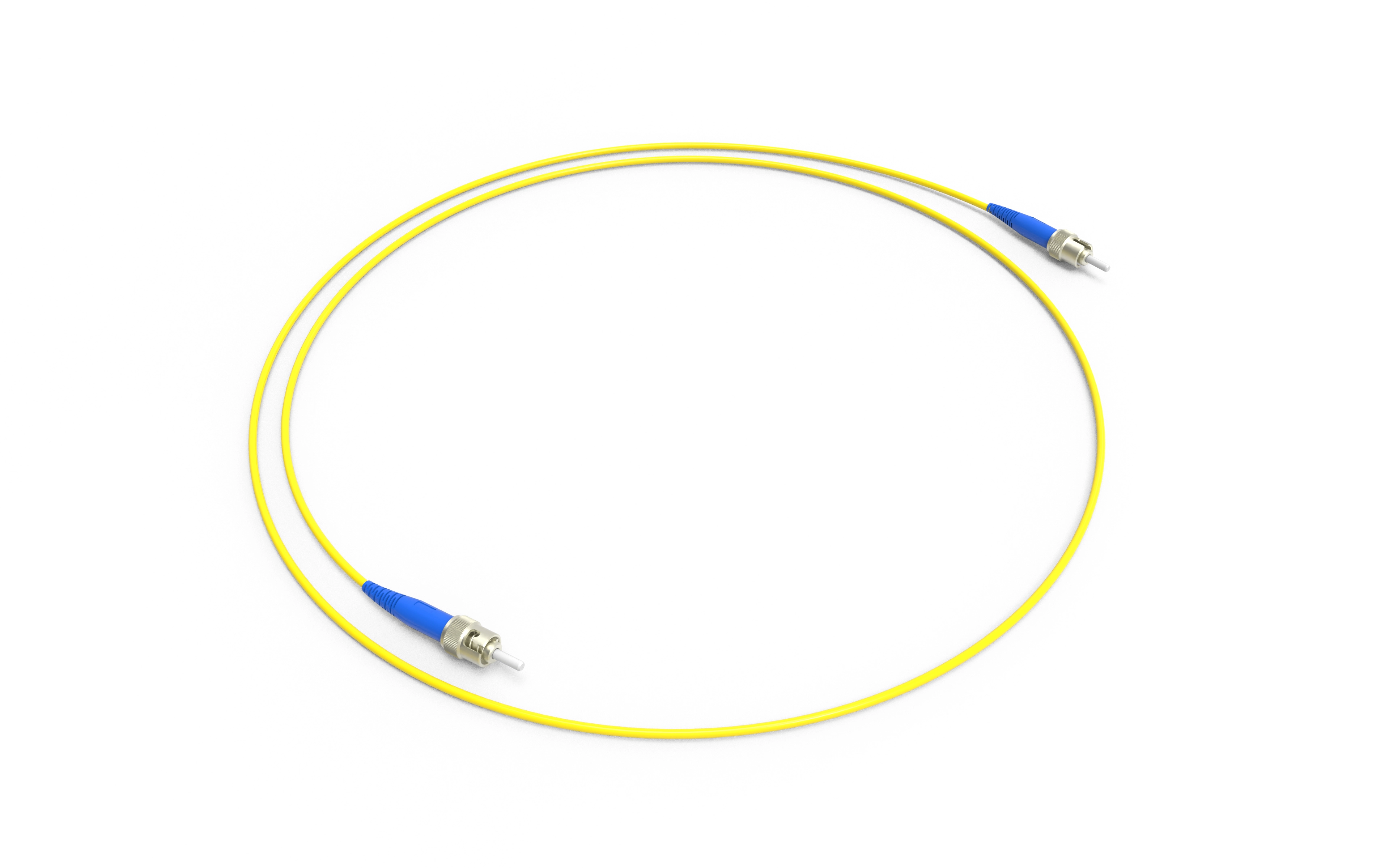

ST-ST UPC single-mode simplex patch cord, 3.0mm LSZH outer jacket, OS2 fiber, for legacy telecom/industrial equipment
3.0mm thick jacket provides anti-bending and anti-abrasion performance, suitable for equipment room/industrial environments; UPC endface with low IL and high RL, ST connector with bayonet-style locking, secure connection.
Compatible with legacy equipment interfaces, high durability, ensures stable link transmission in industrial/telecom scenarios
| Fiber Type | Single-mode OS2 (9/125μm) |
| Connector Type | ST/UPC Simplex |
| Jacket Material | 3.0mm LSZH low-smoke halogen-free outer jacket |
| Insertion Loss | ≤0.3 dB (Typical, IEC 61300-3-4 compliant) |
| Return Loss | ≥50 dB (UPC, IEC 61300-3-6 compliant) |
| Operating Wavelength | 1310/1550 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 30mm / Static 15mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-2, TIA/EIA-568-C.3 |
