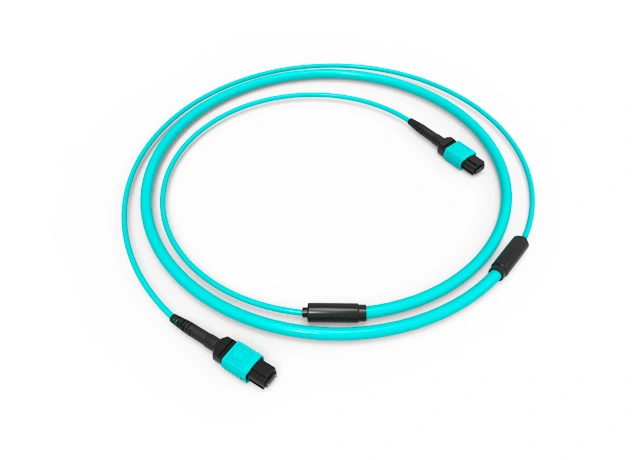

12-core MPO backbone patch cord with OM3 aqua outer jacket and dual-ended MPO connectors, reinforced with mid-section strain relief sleeve. Every finished cord passes full optical testing and features 70N vertical tensile resistance with customizable overall length. Manufactured with multimode backbone fiber, it boasts outstanding bend & tensile performance for rack-to-rack interconnection and high-density patch panel cross-link in data center, reliably supporting 10G/40G high-speed transmission. Custom length option eliminates on-site splicing and shortens field construction cycle.
Available for Single Mode & Multi Mode fiber.
With PVC or LSZH cable.
Vertical tensile strength > 70N.
Length can be customized.
| Fiber Configuration | 12-fiber integrated backbone structure |
| Fiber Type | OM3 multimode fiber |
| Outer Jacket Color | Aqua cyan standard OM3 color |
| Connector Type | Standard MPO male/female optional |
| Rated Vertical Tensile Load | 70N |
| Length Option | Full customizable per project requirement |
| Testing Standard | 100% finished product optical performance inspection |
| Insertion Loss | ≤0.35dB typical per port |
| Return Loss | ≥25dB(UPC) |
| Operating Temperature | -20℃ ~ +70℃ |
| Compliance Standard | Conforms to TIA-604-5, IEC60794, ISO/IEC11801, matching mainstream international backbone patch cord specifications |
