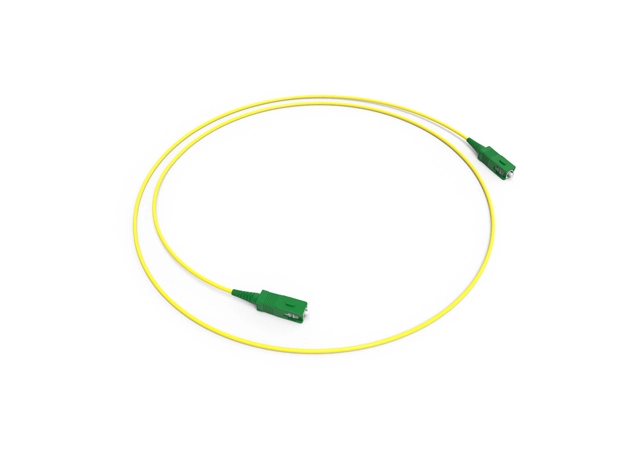

SC-SC APC single-mode simplex patch cord, 3.0mm LSZH outer jacket, OS2 fiber, for FTTX/telecom access networks
3.0mm thick jacket provides anti-bending and anti-abrasion performance, suitable for equipment room/outdoor
High durability, adapts to complex cabling environments, ensures stable transmission of PON network links
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Single-mode OS2 (9/125μm) |
| Connector Type | SC/APC Simplex |
| Jacket Material | 3.0mm LSZH low-smoke halogen-free outer jacket |
| Insertion Loss | ≤0.3 dB (Typical, IEC 61300-3-4 compliant) |
| Return Loss | ≥60 dB (UPC, IEC 61300-3-6 compliant) |
| Operating Wavelength | 1310/1550 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 30mm / Static 15mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-4, TIA/EIA-568-C.3 |
