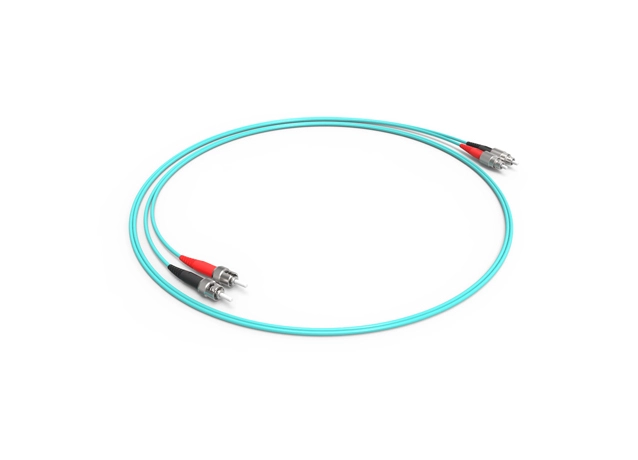

ST/FC dual locking connectors, OM3 multimode fiber, 2.0mm PVC/LSZH jacket, color-coded duplex
Reliable locking connection, 10G transmission support, flexible and durable cable
Ideal for high-speed multimode links in mixed ST/FC environments
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Multimode OM3 (50/125μm, G.651.1) |
| Connector Type | ST/UPC to FC/UPC duplex |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen), Cable diameter: 2.0mm |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 25 dB |
| Operating Wavelength | 850nm / 1300nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-4, IEC 61754-2, TIA/EIA-568-C.3 |
