lc to st patch cable

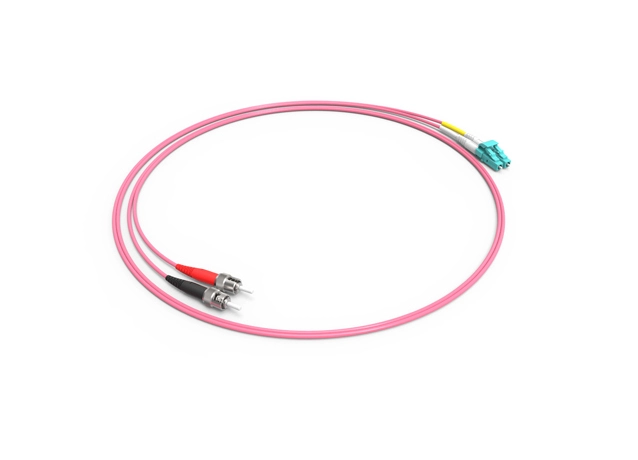

ST-LC OM4 3.0mm Duplex Patch Cord

Fiber optic patch cables refer to passive devices that connect different devices and systems in fiber optic communication by installing connector plugs on both ends of the fiber optic cable to achieve active connection of the optical path. It is used in combination with fiber optic distribution frames, junction boxes, terminal boxes, etc. to achieve efficient and flexible operation of the entire fiber optic communication network, with different specifications such as single mode/multimode/single core/dual core.
Get a Quote >

The Features of ST-LC OM4 3.0mm Duplex Patch Cord

01 01
01
01

Supports single-mode/multi-mode optical fibers.

02 02
02
02

High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.

03 03
03
03

Cabes sheath LSZH/PVC are optional.

04 04
04
04

The length of the fiber optic patch cables is customizable.

Parameter List of ST-LC OM4 3.0mm Duplex Patch Cord

ST-LC OM4 3.0mm Duplex Patch Cord
Connector typeST-LC
Fiber Counts2F
PolishUPC
Fiber TypeMM
Insertion Loss(typical)≤0.20dB
Return Loss≥25dB(850nm&1300nm)
Jacket Material(optional)LSZH/PVC
Fiber ModerOM4
Operating Temperature-20~+70°C
