Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.

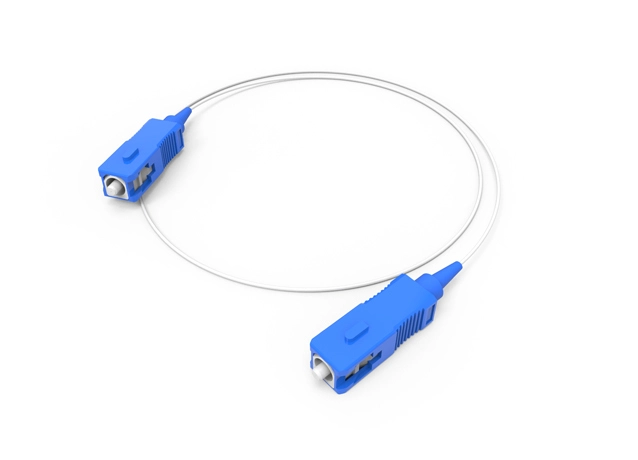

SC-SC UPC 0.9mm Simplex Patch Cord | ||
Connector type | SC | |
Polish | UPC | |
Fiber Type | SM | MM |
Insertion Loss (typical) | ≤0.30dB | ≤0.20dB |
Return Loss | ≥50dB (1310nm & 1550nm) | ≥25dB (850nm & 1300nm) |
Jacket Material (optional) | LSZH/PVC | |
Fiber Moder | G652D/G657A1/G657A2/OM1/OM2/OM3/OM4/OM5 | |
Operating Temperature | -20~+70°C |
