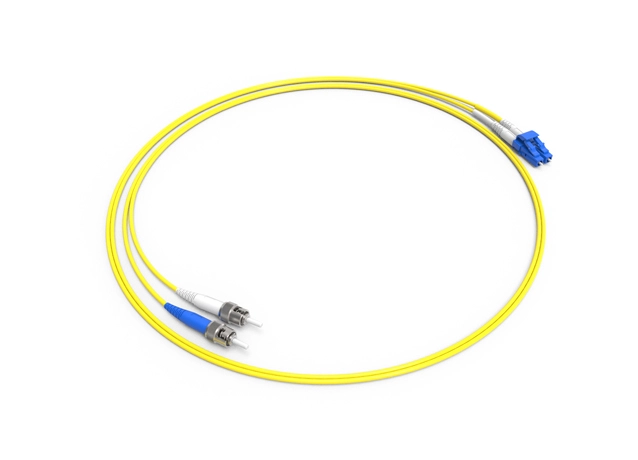

ST bayonet to LC duplex clip single-mode patch cord, UPC end face, 2.0mm PVC/LSZH jacket, color-coded duplex
ST connector for secure locking; integrated LC duplex clip housing ensures neat wiring; low insertion & high return loss; flexible cable for easy routing; color-coded to prevent misconnection
Ideal for connecting legacy ST devices to high-density LC ports in single-mode telecom environments, supporting standardized and efficient cabling
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Single-mode OS2 |
| Connector Type | FC/UPC to FC/UPC, duplex |
| Jacket Material | 2.0mm LSZH (Low Smoke Zero Halogen) |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 50 dB |
| Operating Wavelength | 1310 nm / 1550 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-2, TIA/EIA-568-C.3, |
