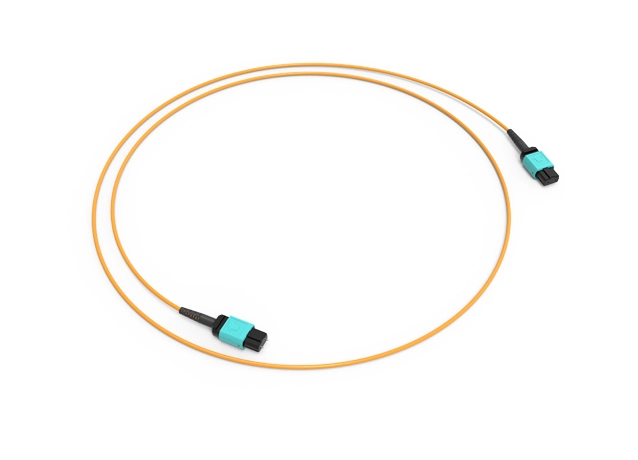

MTP (Female)-MTP (Male) 12-fiber multimode OM3 patch cord, 7m, with Aqua LSZH jacket
12-fiber high-density design for 40/100G transceivers; male-female direct connection without adapter, low insertion loss, supports MPO/MTP polarity management, ≥500 mating cycles
Simplifies high-density cabling, increases link capacity, reduces deployment costs, ensures high-speed transmission in data centers
It can smoothly upgrade to higher data transmission rates.
Apply to High-density Connections for 40G/100G/200G/400G.
Raw materials have passed RoHS certification.
| Fiber Type | Multimode OM3 (50/125μm) |
| Connector Type | MTP (F) - MTP (M), 12 fibers |
| Jacket Material | LSZH low-smoke halogen-free (Aqua color) |
| Insertion Loss | ≤0.35 dB (Typical, IEC 61300-3-4 compliant) |
| Return Loss | ≥20 dB (Multimode, IEC 61300-3-6 compliant) |
| Operating Wavelength | 850/1300 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 30mm / Static 15mm |
| Mating Cycles | ≥500 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-20, TIA/EIA-568-C.3 |
