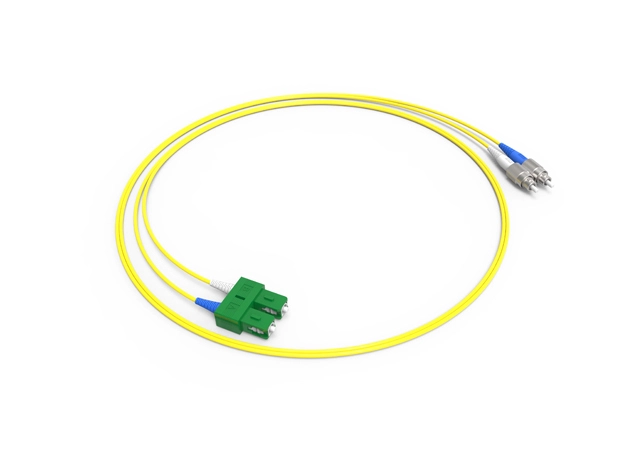

SC/APC to FC/APC duplex single-mode patch cord with SC duplex clip-on housing, 2.0mm PVC/LSZH jacket, SC duplex clip push-pull connector, FC screw-locking connector, APC angled-polished end face
APC end face provides ultra-high return loss to suppress reflected signals; integrated SC duplex clip housing ensures neat wiring and quick mating; FC screw-locking design is anti-vibration and anti-loosening; 2.0mm cable balances flexibility and mechanical strength
Ideal for CATV, FTTx and telecom rooms, solving interconnection between SC duplex clip devices and FC interface equipment; ensures efficient wiring and stable, interference-free transmission, meeting strict low-reflection requirements
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
The length of the fiber optic patch cables is customizable.
Cabes sheath LSZH/PVC are optional.
| Fiber Type | Single-mode OS2 (G.652D / G.657A2) |
| Connector Type | SC duplex clip /APC to FC/APC |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen), Cable diameter: 2.0mm |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 60 dB |
| Operating Wavelength | 1310nm / 1550nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-4, IEC 61754-2, TIA/EIA-568-C.3 |
