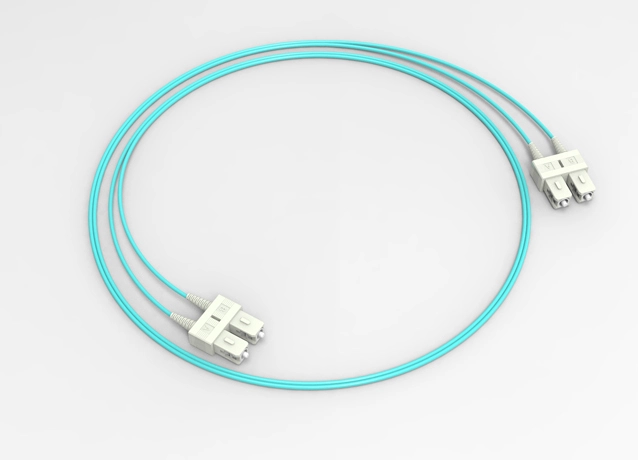

SC-SC multimode duplex patch cord, OM3 (50/125μm) fiber, 2.0mm LSZH jacket, Aqua color, with duplex clip, for data center/enterprise network 10G links
With duplex clip to fix Tx/Rx pitch, preventing tangling and polarity reversal; 2.0mm jacket balances flexibility and bending resistance; SC connector push-pull latching, low insertion loss, ≥1000 mating cycles
Meets 10G Ethernet transmission requirements, improves cabling tidiness and maintainability, ensures stable bidirectional optical link transmission
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Multimode OM3 (50/125μm) |
| Connector Type | SC/UPC Duplex (with duplex clip) |
| Jacket Material | 2.0mm LSZH low-smoke halogen-free outer jacket (Aqua color) |
| Insertion Loss | ≤0.3 dB (Typical, IEC 61300-3-4 compliant) |
| Return Loss | ≥20 dB (Multimode, IEC 61300-3-6 compliant) |
| Operating Wavelength | 850/1300 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-4, TIA/EIA-568-C.3 |
