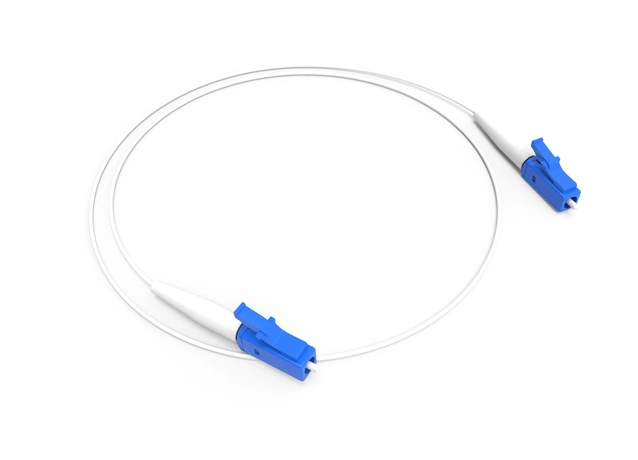

LC-LC UPC single-mode simplex patch cord, 0.9mm tight-buffered structure, OS2 fiber, for equipment internal/patch module interconnection
Compact 0.9mm tight-buffered design for high-density applications; UPC endface with low IL and high RL, LC connectors with ≥1000 mating cycles
Saves cabling space, adapts to high-density device ports, ensures stable short-haul optical link transmission
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
.The length of the fiber optic patch cables is customizable.
| Fiber Type | Single-mode OS2 (9/125μm) |
| Connector Type | LC/UPC Simplex |
| Jacket Material | 0.9mm tight-buffered (no outer jacket) |
| Insertion Loss | ≤0.2 dB (Typical, IEC 61300-3-4 compliant) |
| Return Loss | ≥50 dB (UPC, IEC 61300-3-6 compliant) |
| Operating Wavelength | 1310/1550 nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 15mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-20, TIA/EIA-568-C.3 |
