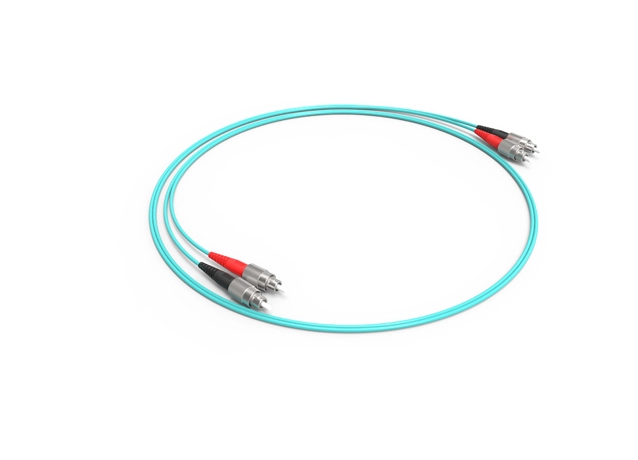

FC/UPC to FC/UPC duplex connector, OM3 multimode fiber, 3.0mm PVC/LSZH jacket, metal screw-locking housing, high mechanical strength
Screw-locking design for anti-vibration and anti-loosening; OM3 fiber supports 10Gbps transmission up to 300m; 3.0mm cable offers superior tensile and bend resistance
Reliable connection for data center and enterprise network links; meets high-speed multimode transmission requirements; ideal for complex wiring environments with frequent handling
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Multimode OM3 (50/125μm, G.651.1) |
| Connector Type | FC/UPC to FC/UPC, duplex |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen), Cable diameter: 3.0mm |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 20 dB |
| Operating Wavelength | 850nm / 1300nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-2, TIA/EIA-568-C.3 |
