Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.

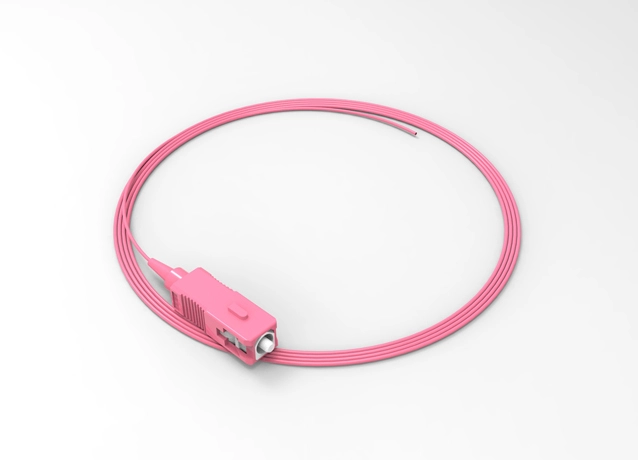

| SC OM4 2.0mm Pigtails | ||
| Connector type | SC | |
| Polish | UPC | |
| Fiber Type | MM | |
| Insertion Loss (typical) | ≤0.20dB | |
| Return Loss | ≥25dB (850nm & 1300nm） | |
| Jacket Material (optional) | LSZH/PVC | |
| Vertical Tensile Strength | ≥70N | |
| Fiber Moder | OM4 | |
| Operating Temperature | -20~+70°C | |
