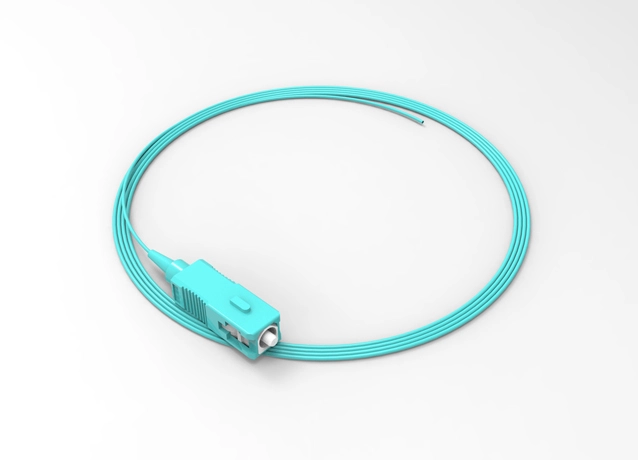

SC/UPC simplex pigtail, OM3 multimode fiber, 2.0mm PVC/LSZH tight-buffered cable, simplex structure
Stable connector, 10G transmission support, flexible cable for easy splicing, simplex design for splicing trays
Used for fiber splicing and distribution, enabling fast termination between equipment ports and trunk cables
Supports single-mode/multi-mode optical fibers.
High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.
Cabes sheath LSZH/PVC are optional.
The length of the fiber optic patch cables is customizable.
| Fiber Type | Multimode OM3 (50/125μm, G.651.1) |
| Connector Type | SC/UPC simplex |
| Jacket Material | PVC / LSZH (Low Smoke Zero Halogen), Cable diameter: 2.0mm |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 25 dB |
| Operating Wavelength | 850nm / 1300nm |
| Operating Temperature | -20℃ ~ +70℃ |
| Min. Bend Radius | Dynamic 20mm / Static 10mm |
| Mating Cycles | ≥1000 cycles (IEC 61300-2-2 compliant) |
| 3D Interferometer Test | Radius of Curvature (R): 10~25mm; Apex Offset: ≤50μm; Fiber Height: ±50nm |
| Compliance Standard | IEC 61754-4, TIA/EIA-568-C.3 |
