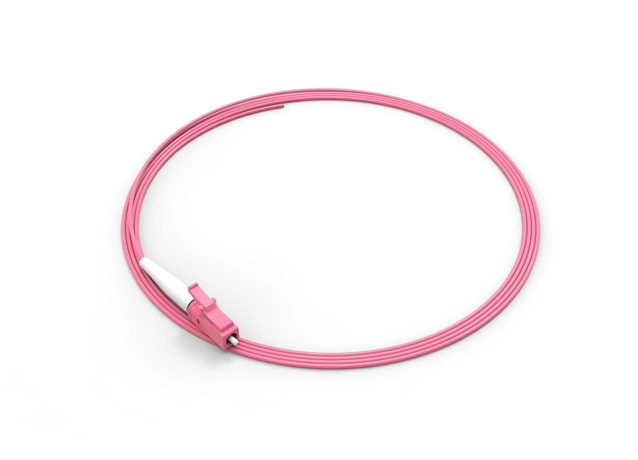

LC OM4 2.0mm Pigtails

Fiber optic pigtails is used to connect fiber optic cables and fiber optic couplers. It has only one end with a connector, and the other end is a broken end of a fiber optic cable core, which is connected to other fiber optic cable cores through fusion. Often found in fiber optic terminal boxes, it is used to connect optical cables to fiber optic transceivers (with couplers, jumpers, etc.).
Get a Quote >

The Features of LC OM4 2.0mm Pigtails

01 01
01
01

Supports single-mode/multi-mode optical fibers.

02 02
02
02

High precision A-grade ceramic sleeve - good stability, repeatability, and interchangeability.

03 03
03
03

Cabes sheath LSZH/PVC are optional.

04 04
04
04

The length of the fiber optic patch cables is customizable.

Parameter List of LC OM4 2.0mm Pigtails

LC OM4 2.0mm Pigtails
Connector typeLC
PolishUPC
Fiber TypeMM
Insertion Loss (typical)≤0.20dB
Return Loss≥25dB (850nm & 1300nm)
Jacket Material (optional)LSZH/PVC
Vertical Tensile Strength≥70N
Fiber ModerOM4
Operating Temperature-20~+70°C
