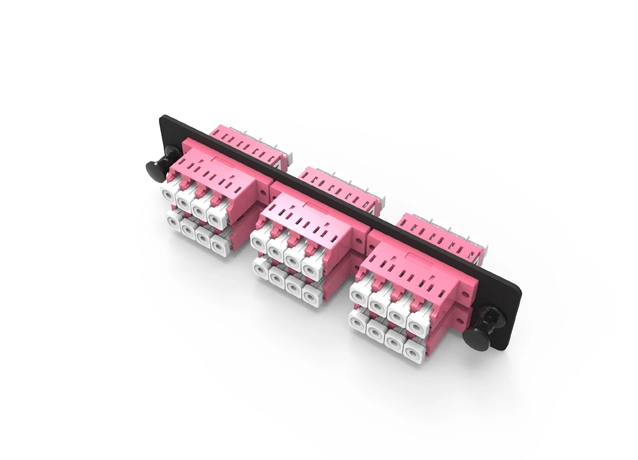

LGX Type 6 Ports Quad LC Fiber Optic Adapter Panel is a standard LGX-compatible adapter plate, supporting 6 Quad LC ports for a total of 24 fibers.
It is designed for quick, tool-free installation into LGX-style fiber patch panels, enabling high-density fiber termination. The Quad LC configuration maximizes port count within a compact LGX footprint, while the robust housing ensures stable, low-loss connections.
Ideal for data centers and enterprise networks requiring high-density, modular fiber distribution, it provides a flexible, scalable solution for LC-based fiber connections.
| Model | LGX Type 6 Ports Quad LC Fiber Optic Adapter Panel |
| Form Factor | Standard LGX-compatible adapter panel |
| Port Configuration | 6 Quad LC ports (24 fibers total) |
| Installation | Tool-free, snap-in design for LGX-style frames |
| Adapter Type | Quad LC duplex adapters |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.3dB (LC adapter) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Rugged metal housing |
| Compliance | Compliant with TIA-568-C.3 and IEC 61754-7 standards |
