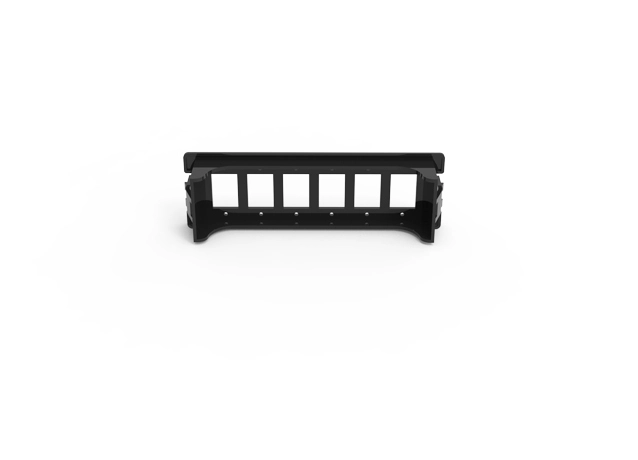

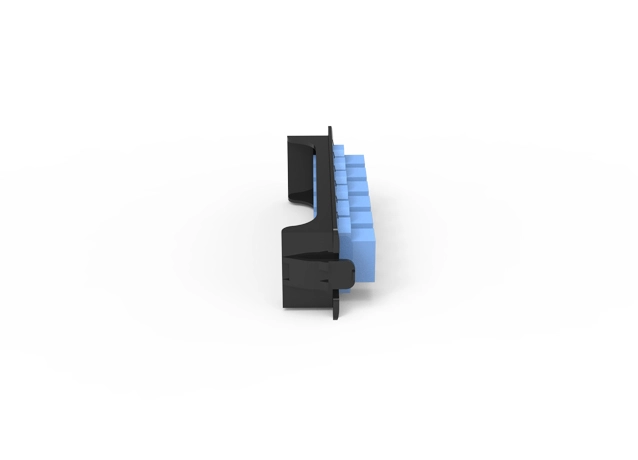

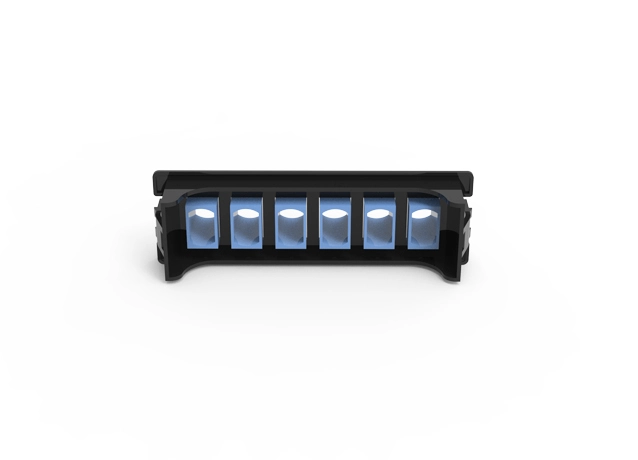

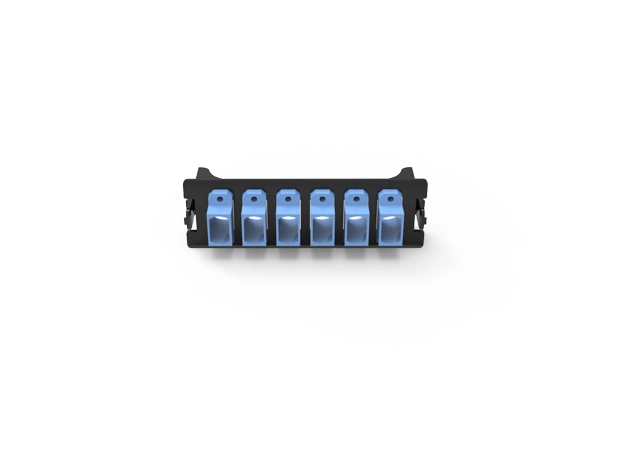

92 Type 6 Ports MPO Fiber Optic Adapter Panel is a compact 92-form-factor MPO adapter plate, supporting 6 MPO ports for high-density multi-fiber connections.
It features a snap-in, tool-free design for quick installation into compatible fiber patch panels, enabling high-count fiber termination in a small footprint. The rugged housing ensures stable connections and reliable performance in high-density data center environments.
Ideal for 40G/100G/400G high-speed networks requiring MPO-based parallel optics, it provides a modular, scalable solution for high-density fiber distribution.
| Model | 92 Type 6 Ports MPO Fiber Optic Adapter Panel |
| Form Factor | 92 standard adapter panel |
| Port Configuration | 6 MPO ports (supports 12/24 fibers per port, up to 144 fibers total) |
| Installation | Tool-free snap-in design for compatible frames |
| Adapter Type | MPO/MTP adapters |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.35dB typical (MPO adapter) |
| Return Loss | ≥40dB (multimode) / ≥50dB (single-mode) |
| Construction | Rugged black housing |
| Compliance | Compliant with TIA-568-C.3 and IEC 61754-7 standard |
