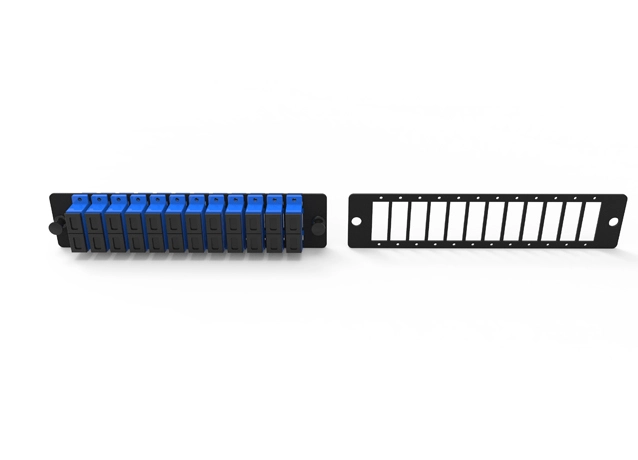

165 Type 12 Ports Duplex SC Fiber Optic Adapter Panel is a standard 165-form-factor adapter plate, supporting 12 duplex SC ports for a total of 24 fibers.
It features a snap-in, tool-free design for quick installation into compatible fiber patch panels, with blue SC/UPC adapters for stable, low-loss connections. The rugged housing ensures mechanical stability and consistent optical performance in high-density rack environments.
Ideal for enterprise networks, campus cabling, and medium-to-large data centers requiring modular, high-density fiber termination, it provides a flexible solution for SC-based fiber distribution
| Model | 165 Type 12 Ports Duplex SC Fiber Optic Adapter Panel |
| Form Factor | 165 standard adapter panel |
| Port Configuration | 12 duplex SC ports (24 fibers total) |
| Installation | Tool-free snap-in design for compatible frames |
| Adapter Type | SC/UPC duplex adapters (blue) |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.3dB (SC adapter) |
| Return Loss | ≥45dB (UPC) |
| Construction | Rugged black housing |
| Compliance | Compliant with TIA-568-C.3 and IEC 61754-4 standards |
