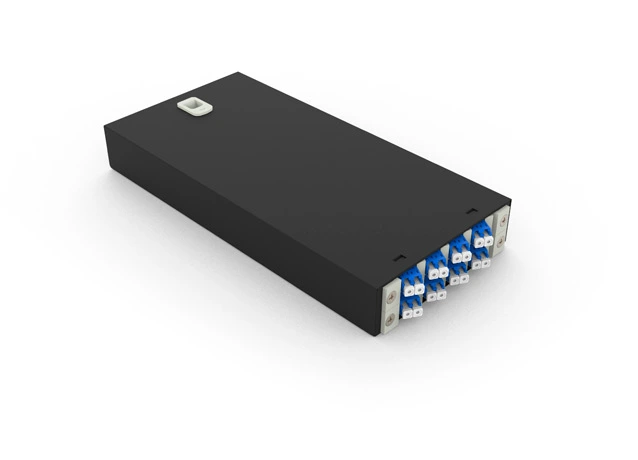

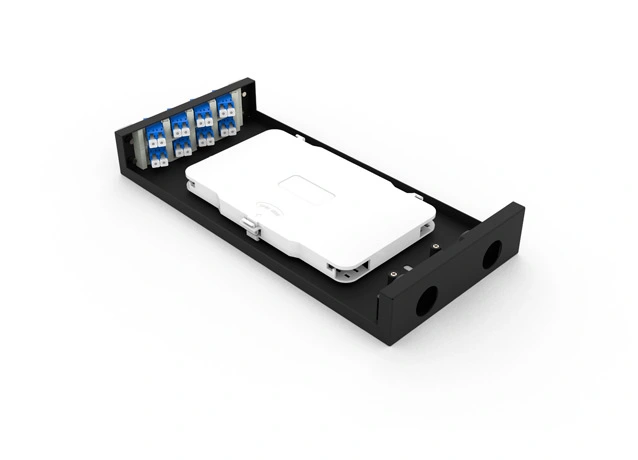

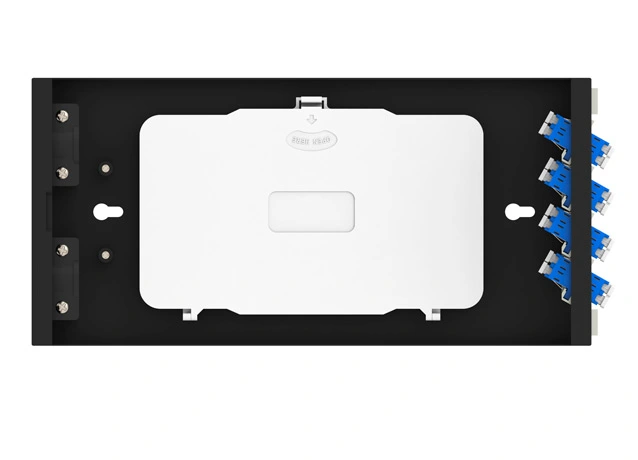

TBS8 wall-mounted fiber terminal box adopts composite structure of cold rolled steel outer frame + flame-retardant plastic inner splice tray, supporting 6/8-fiber duplex LC termination with pre-installed LC duplex adapter slots and side cable inlet/outlet holes. Detachable inner tray can be pulled out independently for maintenance, equipped with fixed slots for heat shrink sleeves and surplus fiber storage to prevent fiber squeeze and bending damage. Designed for FTTH access and small equipment room cabling with duplex LC patch cord layout to protect splices and tidy internal wiring.
Wall mounted installation.
MAX 16 Core.

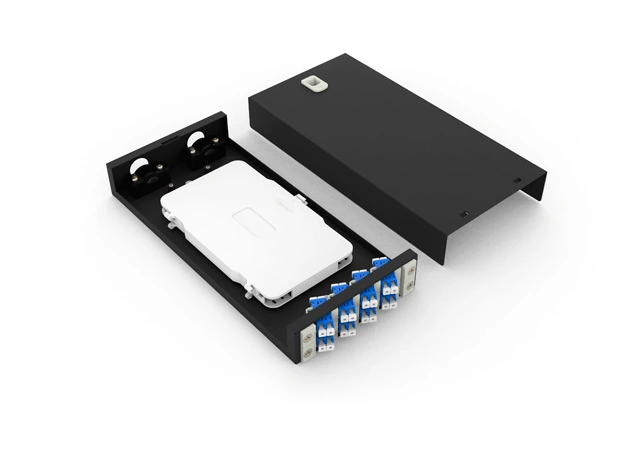

Removable and lockable cover plate.
Angled adapter panel.
With cable clamp for cable entry.
| Model | TBS8 |
| Rated Capacity | Optional 6-core / 8-core fiber termination |
| Connector Type | Duplex LC standard |
| Shell Structure | SPCC steel outer frame + flame retardant plastic inner cassette |
| Installation Mode | Indoor wall-mounted fixing |
| Internal Feature | Pull-out independent inner tray + built-in heat shrink fixing slot + surplus fiber winding area |
| Inlet | Double round cable knockout on side panel |
| Application | FTTH home access, small office fiber termination |
| Operating Temperature | -30℃ ~ +70℃ |
| Compliance Standard | Conforms to IEC60794, YD/T communication industry specification |
