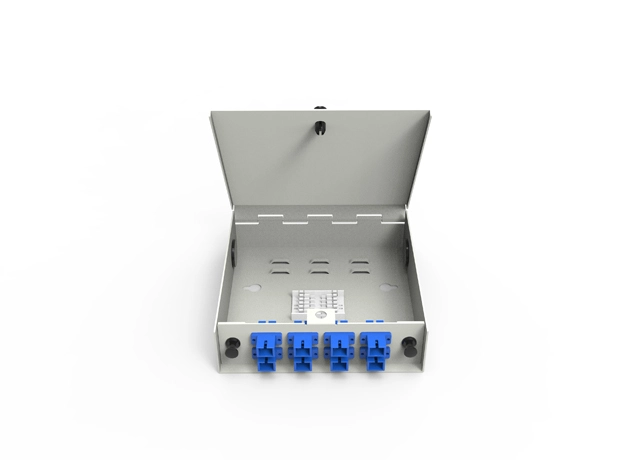

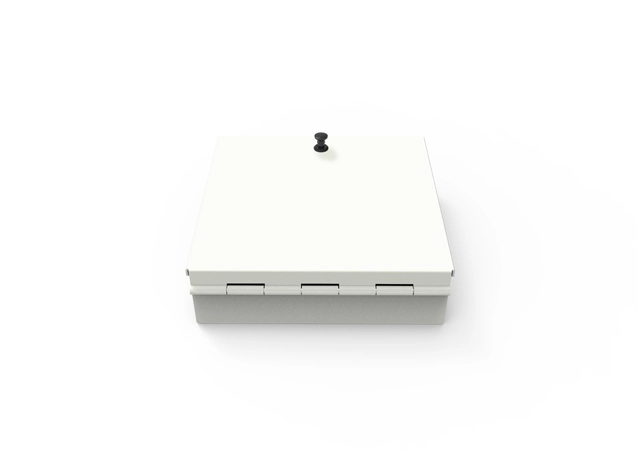

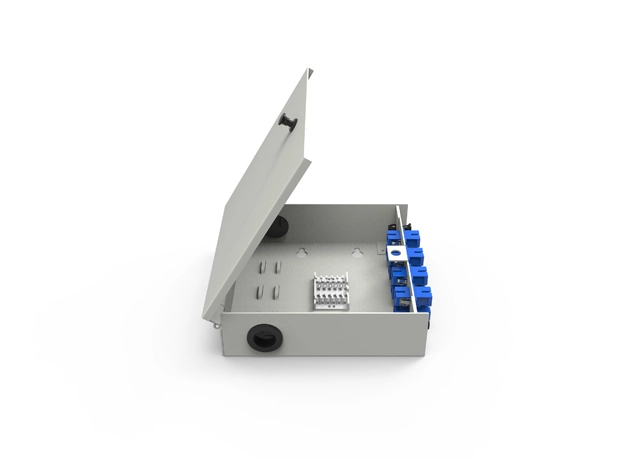

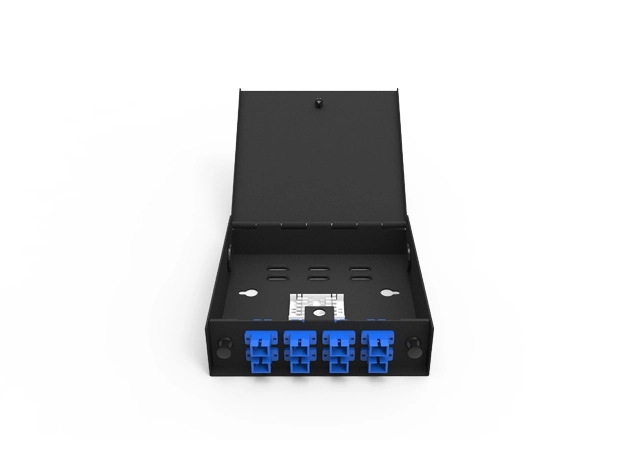

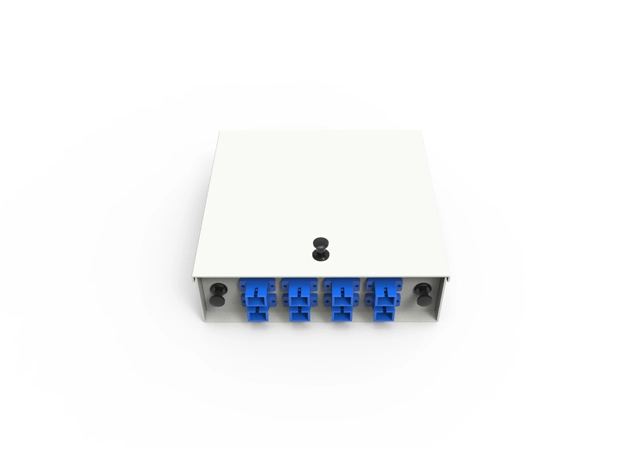

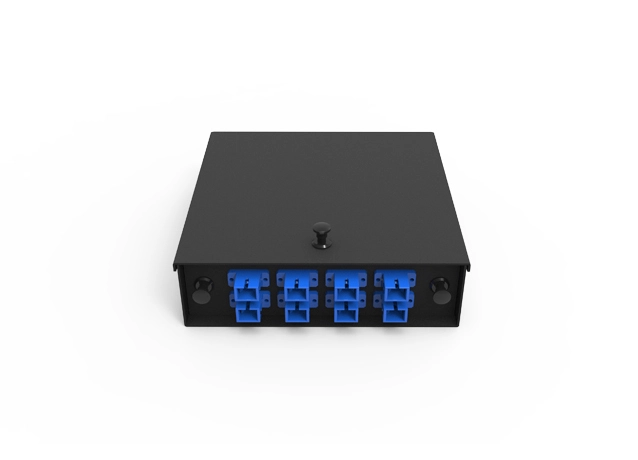

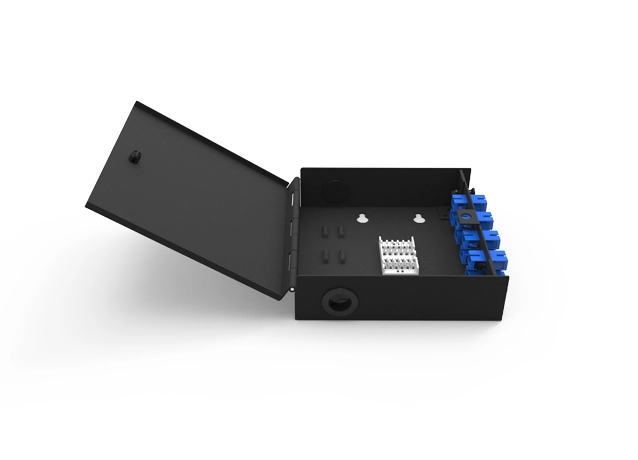

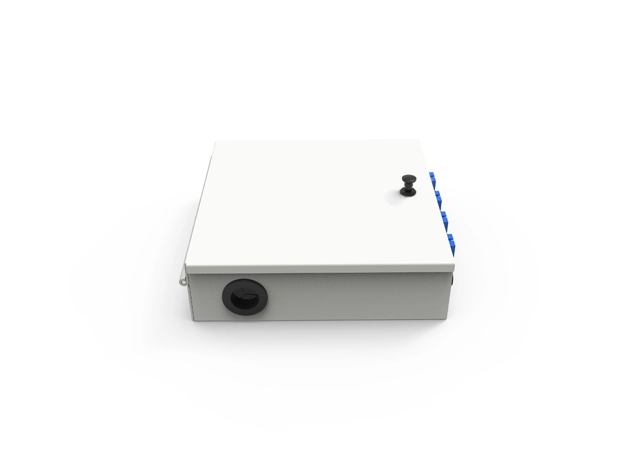

TBA8 wall-mounted fiber terminal box is fabricated with bent cold rolled steel, adopting flip hinge design with anti-theft knob lock on top for indoor wall installation, designed for max 8-fiber splicing termination. Internal surplus fiber storage space and fixing slots for heat shrink sleeves integrate cable splicing & storage, protecting splice joints from pulling force and damp damage. Widely deployed for FTTH home access, retail & office indoor cabling, reliably safeguarding voice, video and data transmission as essential end termination accessory for fiber access network.
| Model | TBA8 |
| Rated Fiber Capacity | Max 8 fibers |
| Shell Material | Cold rolled SPCC steel sheet |
| Opening Structure | Flip cover with hinge + top knob lock |
| Installation Type | Indoor wall fixed mounting |
| Inner Layout | Built-in surplus fiber winding area + heat shrink tube fixed position |
| Surface Finish | White anti-rust electrostatic spray coating |
| Application | FTTH home, small business indoor fiber termination |
| Operating Environment | Indoor -20℃ ~ +65℃ |
| Compliance Standard | Conforms to IEC60794, YD/T domestic fiber box industry specification |
