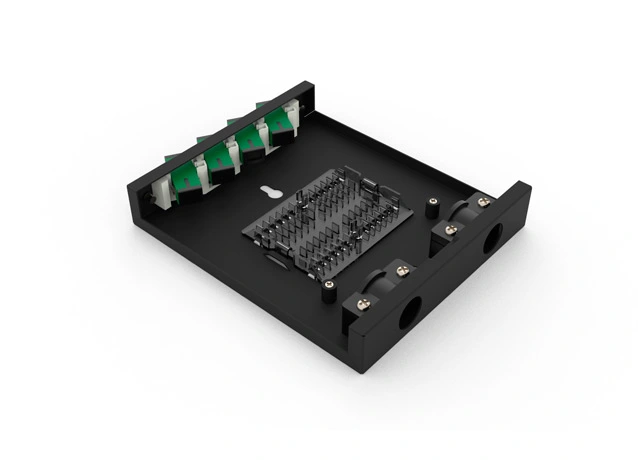

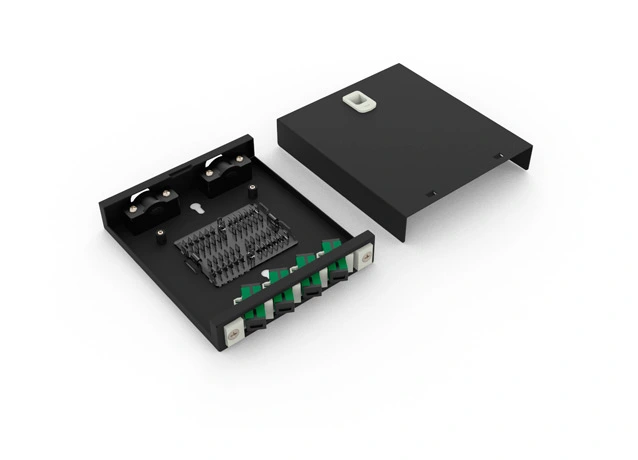

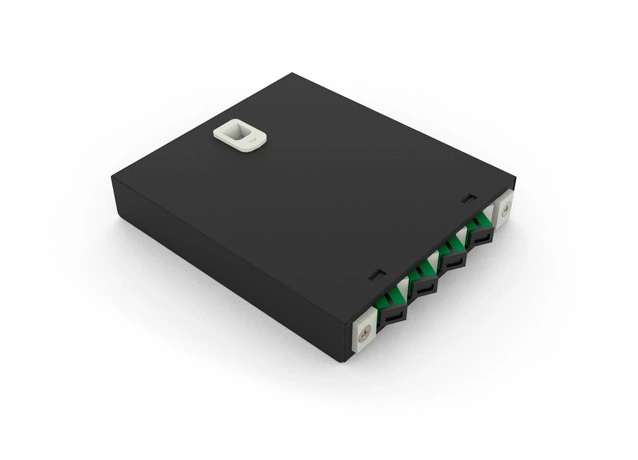

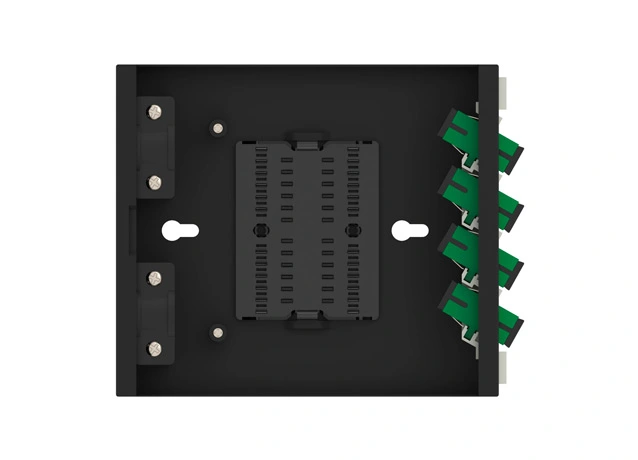

TBS4 wall-mounted fiber terminal box is integrally injection-molded with eco-friendly flame-retardant plastic and RoHS certified. It adopts snap-on flip cover design with 4-port adapter outlet, built-in splicing tray and cable fixing clamps for max 4-fiber termination. With reserved surplus fiber winding space, it is designed for indoor FTTH access and partial outdoor wall mounting to protect splices against bending and impact damage, widely used for home and small-store fiber termination.
Wall mounted installation.
MAX 8 Core.
Removable and lockable cover plate.
Angled adapter panel.
With cable clamp for cable entry.
| Model | TBS4 |
| Max Fiber Capacity | 4 fibers |
| Shell Material | Flame retardant engineering plastic, RoHS compliant |
| Port Configuration | Pre-set 4pcs adapter mounting slots |
| Internal Structure | Integral splicing tray + cable fixing stand + surplus fiber storage area |
| Mounting Type | Indoor wall fixed installation |
| Appearance Color | Black |
| Application | FTTH indoor fiber access termination |
| Operating Temp | -30℃ ~ +70℃ |
| Compliance Standard | Comply with IEC60794, YD/T communication industry specification & RoHS standard |
