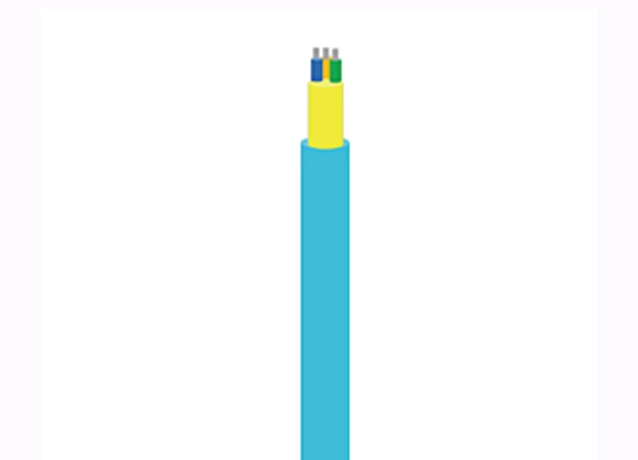

Made of premium fiber with aramid-yarn reinforced tight-buffered structure and standard aqua outer jacket, customized specially for MPO patch cord manufacturing. The cable delivers stable optical index and outstanding mechanical bending & tensile property to fit automatic cutting, injection and crimping production. As raw cable for MPO jumper, it enables mass production of 40G/100G high-speed patch cords, ensures consistent finished product performance and reduces production reject rate & processing cost.
| Type | 12 Core | 3.0mm | ||||||
| The outer diameter of the double sheathed backbone optical cable is 4.5mm | ||||||||
| Weight | 12 Core | 8kg/km | ||||||
| Minimum bend radius | static | 10D | ||||||
| dynamic | 20D | |||||||
| Pulling force | short-term | 300N | ||||||
| long-term | 150N | |||||||
| Storage temperature | -20℃～+70℃ | |||||||
| Operating temperature | -20℃～+70℃ | |||||||
| Remark: all the values in the table are reference value, subject to the actual customer request. | ||||||||
| Available Fiber Count | 8/12/24/48 fibers |
| Optional Fiber Grade | OM3/OM4/OM5 Multimode, G.652D/G.657A Single-mode |

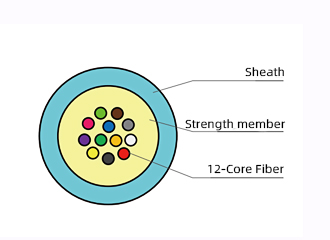

| Cable Structure | Indoor tight buffered construction with aramid yarn strength member |
| Outer Jacket | Standard aqua-blue LSZH or PVC sheath |
| Typical Insertion Loss Reference | Matched ≤0.35dB(UPC)/≤0.5dB(APC) after MPO termination |
| Typical Return Loss Reference | Matched ≥55dB(UPC)/≥65dB(APC) after MPO termination |
| Operating Temperature | -20℃ ~ +70℃ |
| Minimum Bend Radius | Static 10×OD, Dynamic 15×OD |
| Tensile Property | Short-term tensile ≥200N, Long-term tensile ≥100N |
| Transmission Spec | OM4 supports 100G up to 150m, OM5 supports SWDM4 multi-wavelength transmission |
| Compliance Standard | Complies with IEC60794、IEC60793、TIA/EIA568-C.0、ITU-T G.652/G.657, consistent with Corning & Commscope raw cable specification |
