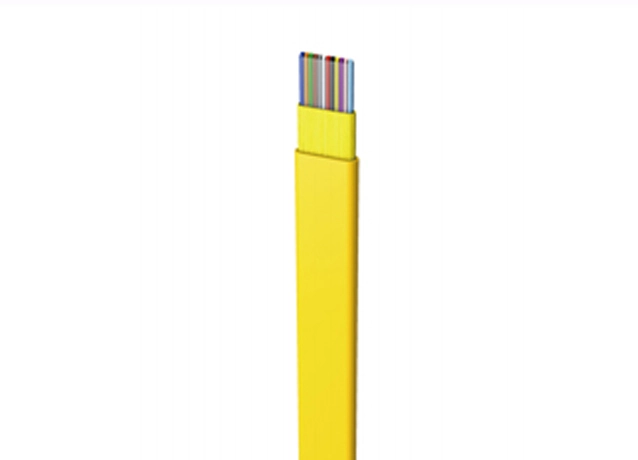

Featured in flat ribbon design with optional 4/6/8/12 fiber construction, high-modulus aramid yarn strength member and high-performance sheath. Slim flexible structure brings outstanding tensile & bending performance, enables high-efficiency mass fusion splicing for easier field installation. It optimizes high-density rack cabling to save cabinet space, reduces labor & maintenance cost, perfectly matches MPO breakout cord and ODF distribution applications..
Select quality fiber to ensure excellent transmission performance.
Extremely high fiber density, small size, light weight, good looking and compact structure.
Easy for installation and splicing, branching and flame retardant.
All dielectric structure design, without electromagnetic induction effect.
Applicable to indoor cabling, generally for connection between fiber ribbons;
Applicable to high density interconnection of MT or MTP connectors;
Serve as pigtail, patchcord or flexible connection of ribbon fiber in instruments and communication equipments.
Fiber type: single-mode fiber G652B/D, G657 or G655A/B/C, multi-mode fiber A1a, A1b or OM3, or other types.
Selection of materials: According to customer demand, the sheath materials can adopt PVC, PU, LSZH, PLENUM, etc.
| Type | Cable dimension (mm) | Cable weight | Tensile strength | Minimum bending radius (mm) | Crush resistance (N/10cm) | ||||
| (Kg/Km) | (N) | ||||||||
| Width | Height | Short-term | Long-term | Dynamic | Static | Short-term | Long-term | ||
| GJFDJV-4 | 3.5±0.4 | 2.5±0.3 | 8 | 200 | 80 | 100 | 50 | 500 | 200 |
| GJFDJV-6 | 4.0±0.4 | 2.5±0.3 | 8.5 | ||||||
| GJFDJV-8 | 4.5±0.4 | 2.5±0.3 | 9 | ||||||
| GJFDJV-12 | 5.0±0.4 | 2.5±0.3 | 9.5 | ||||||
| Storage temperature | -20℃～+60℃ | ||||||||
| Operating temperature | -20℃～+60℃ | ||||||||
| Remark: all the values in the table are reference value, subject to the actual customer request. | |||||||||
| Fiber Count | 4 / 6 / 8 / 12 fibers per ribbon unit |
| Available Fiber Grade | Single-mode G.652D, G.657A1 / G.657A2 |
| Cable Construction | Flat rectangular ribbon loose-buffered structure |

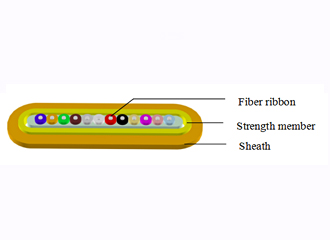

| Strength Member | High modulus aramid yarn surrounding fiber core |
| Outer Jacket Option | LSZH / PVC / PE customized sheath |
| Operating Temperature | -20℃ ~ +70℃ (installation & long-term operation) |
| Storage Temperature | -30℃ ~ +80℃ |
| Minimum Bend Radius | Static:10×Cable OD; Dynamic:15×Cable OD |
| Short-Term Allowable Tensile Load | ≥150N |
| Long-Term Allowable Tensile Load | ≥80N |
| Crush Resistance | ≥500N/100mm |
| Flame Performance | LSZH variant meets IEC 60332-3C flame retardant requirement |
| Termination Compatibility | Support mass fusion splicing, compatible with MPO/LC fan-out assembly |
