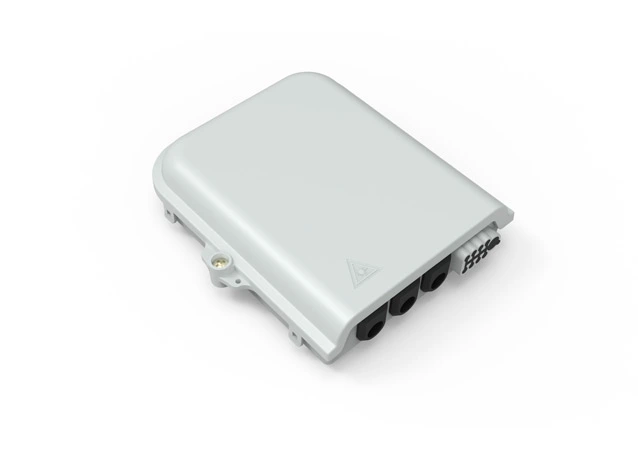

The fully enclosed structure of the case has good dust resistance and IP65 moisture resistance.
Effectively protect and manage cables.
Using high-quality PC&ABS materials, lightweight and beautiful.

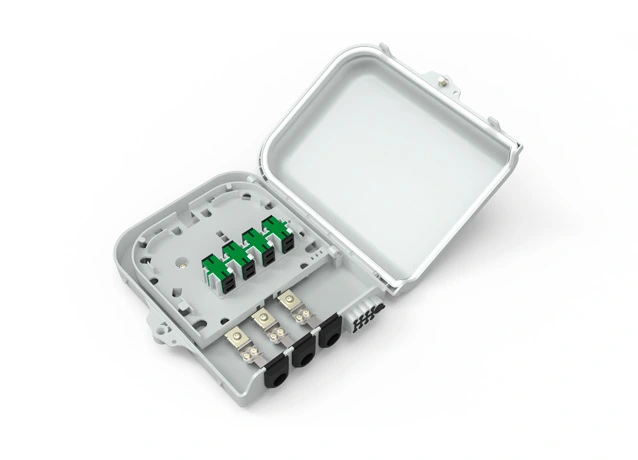

It has functions such as fiber optic splicing, fixation, storage, and distribution.
Suitable for SC and LC duplex adapters and tail fibers.

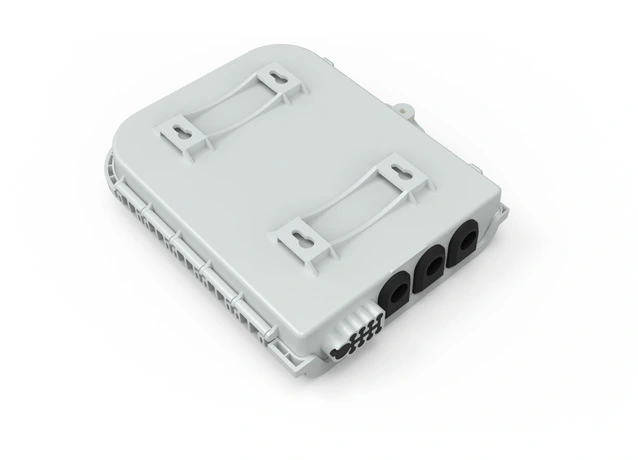

Wall mounted and pole mounted (optional accessories).
| Dimension（W*D*H） | 195mm*228mm*54.2mm |
| Working Temperature | -40°C~+85°C |
| Atmospheric pressure | 70KPa~106Kpa |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | >1000 times |
