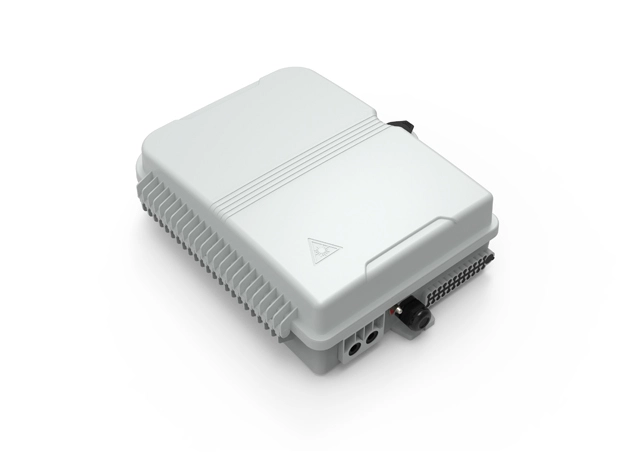

Constructed from high-performance weather-resistant engineering plastic, this wall-mounted fiber box features independent cable routing channels and IP65 waterproof & dustproof rating. Equipped with built-in splice tray, adapter slots and excess fiber storage area, it supports up to 24-core fiber termination; hinged lockable cover enables quick on-site assembly. Widely applied in FTTH residential area and campus access network for trunk fiber split and drop cable distribution, optimizing cable management and cutting failure & maintenance expense.
Total enclosed structure.
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to lP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution..etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each othercassette type SC adaptor installation, easy maintenance.
Can be flipped up, feeder cable can be placed in a cup-joint wav, easy for maintenance and insta ation.
Can be installed by the wav of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
| Rated Fiber Capacity | Max 24 fibers for splicing & distribution |
| Protection Class | IP65 dustproof and waterproof |
| Mounting Method | Wall-mounted fixed installation |
| Cable Layout | Independent separated inlet & outlet routing paths |
| Inner Configuration | Integral splice tray + adapter fixing slot + surplus fiber winding zone |
| Housing Material | Anti-aging UV-resistant reinforced ABS plastic |
| Operating Temperature | -40℃ ~ +75℃ |
| Opening Structure | Hinged flip cover with locking screw design |
| Compliance Standard | Complies with IEC60794, YD/T1272, conforming to international FTTH distribution box industry specifications |
