Case total enclosed structure and the appearance design is beautiful.
Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to lP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, etc. all in one.
Cable, piqtails, patch cords are running through own path without disturbing each othercassette type SC adaptor installation, easy maintenance.
Distribution panel can be bipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Box can be installed by the way of wall-mounted or pole-mounted, suitable for both indoor and outdoor uses.

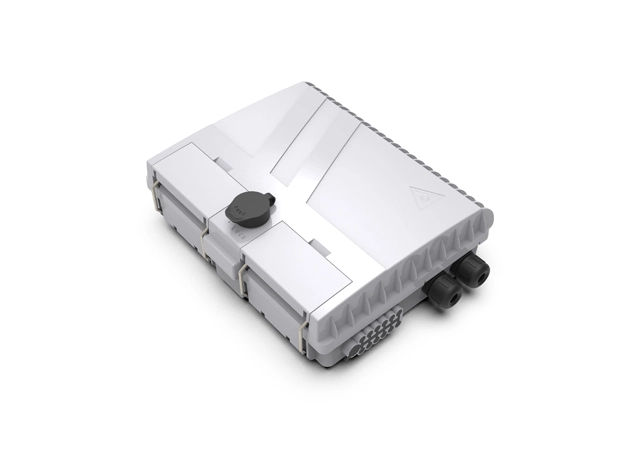

BOA-012A 12 Core Fiber Distribution Box | ||
Dimension (W*D*H) | 293mm*219mm*84mm | |
Working Temperature | -40°C~+85°C | |
Relative humidity | ≤85% (+30°C) | |
Atmospheric pressure | 70KPa~106Kpa | |
Insertion loss | ≤0.2dB | |
UPC return loss | ≥50dB | |
APC return loss | ≥60dB | |
Life of insertion and extraction | >1000 times | |
Standard accessories | User Manual*1/Key*1/Accessories Bag*1/Easy pole ring*2 (Option) |
