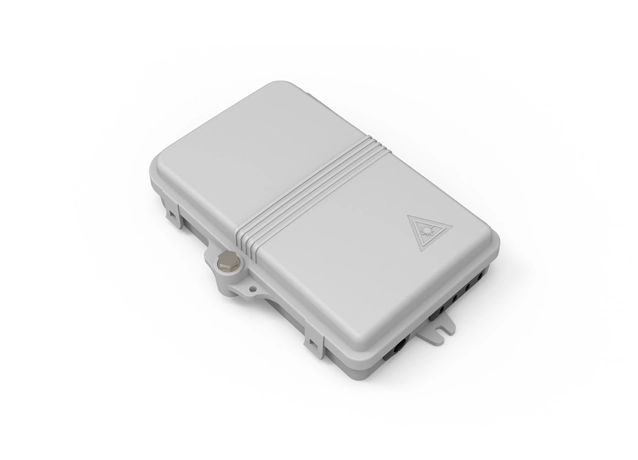

BOB-004A 4 Core Fiber Distribution Box

Name: BOB-004A 4 Core Fiber Distribution Box
Brand: Otrans Communication Technologies (Hangzhou) Co.,Ltd.

Fiber distribution box are one of the important equipment in fiber optic networks, mainly used for distributing and managing optical signals. Its working principle is to distribute the fiber optic signal entering the box to different output ports, thereby achieving the transmission of multiple signals. The fiber optic distribution box provided by OTRANS can effectively improve the stability and security of network transmission, and is suitable for various places such as enterprises, governments, schools, hospitals, and residences.

Get a Quote >

The Features of BOB-004A 4 Core Fiber Distribution Box

Case total enclosed structure and the appearance design is beautiful.

Material: PC&ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to lP65.

Used for clamping, fiber splicing, fixation, storage, distribution and other functions of feeder cables and tap cables.

Suitable for indoor and outdoor environments.

Parameter List of BOB-004A 4 Core Fiber Distribution Box

BOB-004A 4 Core Fiber Distribution Box
Dimension (WDH)	206.1mm135.2mm39.6mm
Working Temperature	-40°C~+85°C
Atmospheric pressure	70KPa~106Kpa
Insertion loss	≤0.2dB
UPC return loss	≥50dB
APC return loss	≥60dB
Life of insertion and extraction	>1000 times
