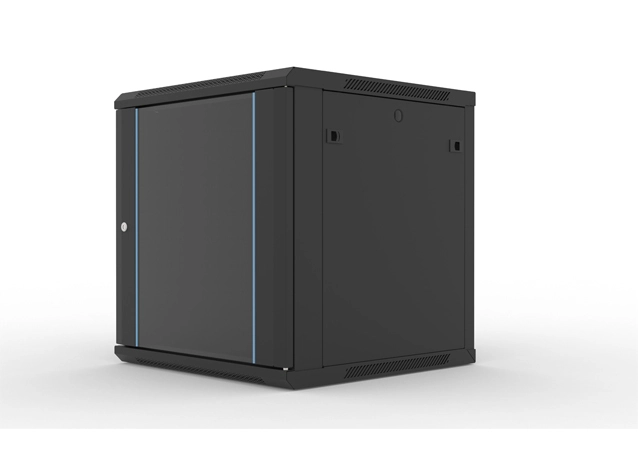

Fabricated from premium SPCC cold-rolled steel, GP wall cabinet covers multiple sizes from 4U to 27U. Equipped with tempered glass front door and detachable side/rear panels, top plate reserves dual fan mounting space with abundant ventilation openings for outstanding heat dissipation. Built-in 19-inch standard mounting rails and wall-mounted structure, customized dimension and accessories are available on demand. Widely applied for office, retail and wiring closet projects; removable panels simplify maintenance and cabling, neatly housing switches & fiber equipment to improve ventilation and avoid overheat shutdown.
Cabinet door variety, 5 kinds of front door to choose from.
The cabinet door panel can be designed with hexagonal openings, with a ventilation rate of 77.85%.
There are reserved wire entry holes in the middle of the top cover and bottom.
Flexible installation, square hole strips can move forward and backward to accommodate wiring products of different sizes.
| Available Rack Height | 4U/6U/9U/12U/15U/18U/22U/27U optional |
| Raw Material | SPCC cold rolled steel sheet |
| Front Door | Transparent tempered glass door with lock |

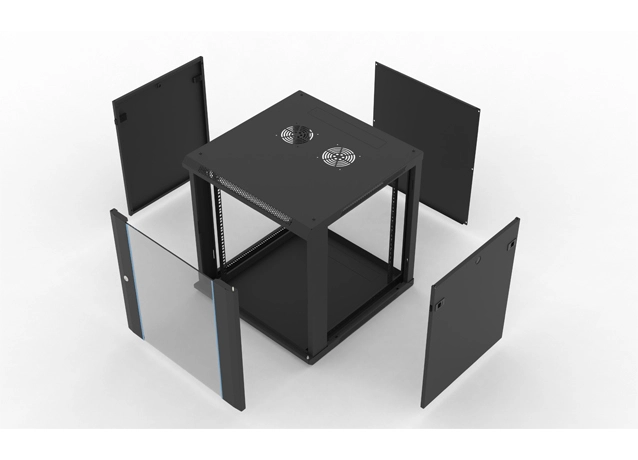

| Side & Rear Panel | Full detachable solid steel sheet |

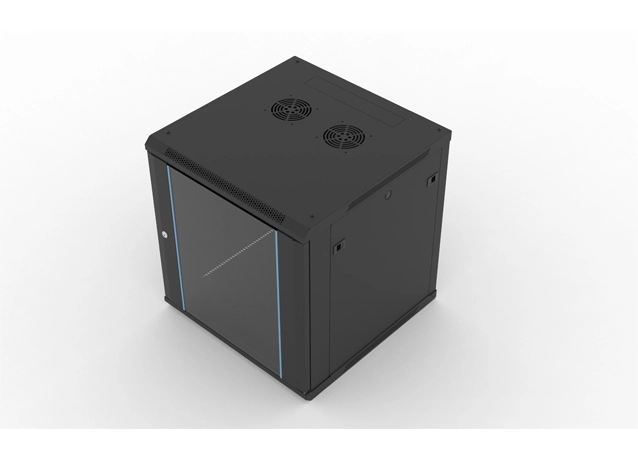

| Top Configuration | Pre-punched holes for 2 cooling fans installation |
| Mount Standard | 19-inch international standard mounting uprights |
| Installation Mode | Indoor wall fixed mounting |
| Surface Finish | Black anti-rust electrostatic powder coating |
| Custom Option | Cabinet depth & accessory configuration customizable |
| Compliance Standard | Conforms to IEC61587, TIA/EIA-310-D, consistent with mainstream global cabinet industrial specifications |
| No. | Model | Width（mm） | Depth（mm） | HU（U） | Height（mm） | Package size（mm） |
| 01 | GP.6404 | 600 | 450 | 4 | 280 | 640*505*140 |
| 02 | GP.6406 | 450 | 6 | 368 | 64*690*245 | |
| 03 | GP.6606 | 600 | 640*655*160 | |||
| 04 | GP.6409 | 450 | 9 | 501 | 640*505*160 | |
| 05 | GP.6609 | 600 | 640*655*160 | |||
| 06 | GP.6412 | 450 | 12 | 635 | 615*690*245 | |
| 07 | GP.6612 | 600 | 645*690*245 | |||
| 08 | GP.6415 | 450 | 15 | 769 | 640*840*200 | |
| 09 | GP.6615 | 600 | 660*840*200 | |||
| 10 | GP.6418 | 450 | 18 | 901 | 640*955*200 | |
| 11 | GP.6618 | 600 | 660*955*200 | |||
| 12 | GP.6422 | 450 | 22 | 1082 | 640*1130*200 | |
| 13 | GP.6622 | 600 | 660*1130*200 | |||
| 14 | GP.6427 | 450 | 27 | 1304 | 640*1355*200 | |
| 15 | GP.6627 | 600 | 660*1355*200 |
