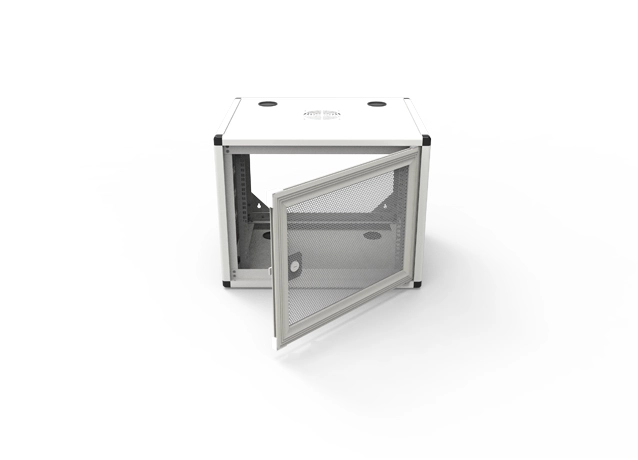

Cabinet Height: 8U standard rack height
Outer Dimension: Depth 650mm, customized width available
Frame Material: Full aviation aluminum alloy frame

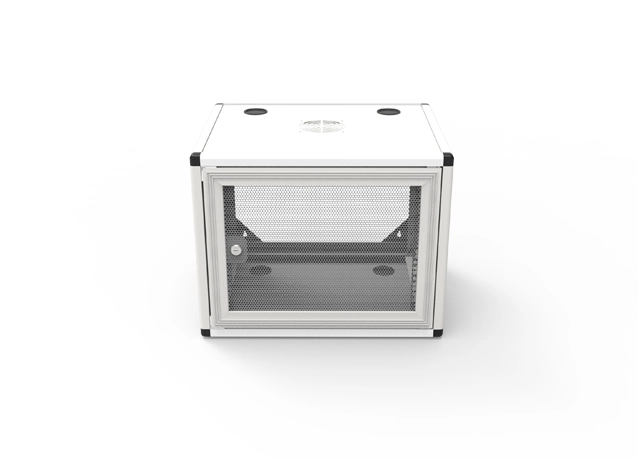

Front Door: Perforated metal mesh door for ventilation
Mount Standard: 19-inch international standard equipment mounting rail
Rated Static Load: Max 60kg uniform load capacity
Installation Style: Indoor wall fixed mounting
Surface Finish: Anodizing smooth anti-corrosion treatment
Operating Ambient: -5℃ ~ +55℃ indoor environment
Compliance Standard: Conforms to IEC61587, TIA/EIA-310-D, consistent with global standard cabinet specification of mainstream cabling brands.
Standard 19" 8U.
Aluminum alloy body.
Ventilaiton design: 3 openable doors.
Net front door:directly observing the interior conditionn.
Interior LED light strips.
High quality sheet metal process and mist surface coating spraying.
| Rated Fiber Capacity | Max 24fibers for splicing & distribution |
| Protection Class | IP65 dustproof and waterproof |
| Mounting Method | Wall-mounted fixed installation |
| Cable Layout | Independent separated inlet & outlet routing paths |
| Inner Configuration | Integral splice tray + adapter fixing slot + surplusfiber winding zone |
| Housing Material | Anti-aging UV-resistant reinforced ABS plastic |
| Operating Temperature | -40℃ ~ +75℃ |
| Opening Structure | Hinged flip cover with locking screw design |
| Compliance Standard | Complies with IEC60794, YD/T1272, conforming to international FTTH distribution box industry specifications |
