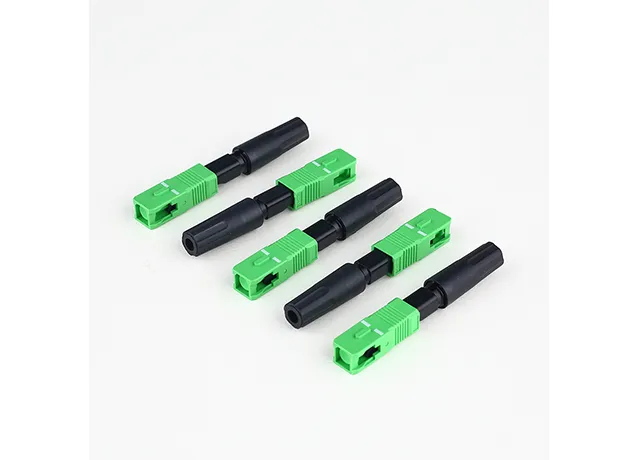

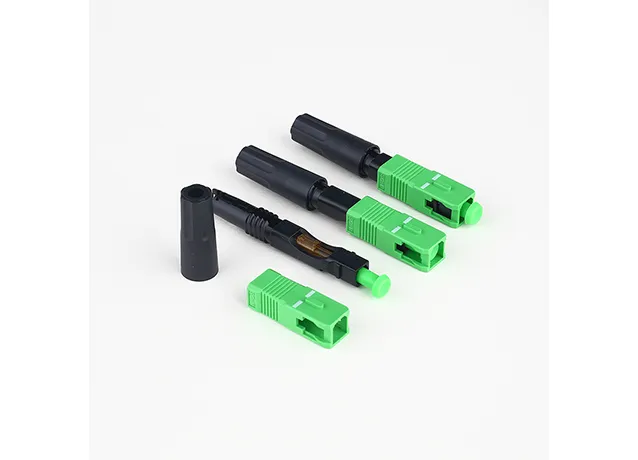

KP53SCAPC field assembly fiber connector features pre-embedded factory-polished fiber with matching gel, ensuring low IL and high RL. It is compatible with common drop cables and G.657 fibers, with wide temperature range, high tensile strength, and 500 mating durability. It can be assembled in ≤2 minutes and re-assembled ≥3 times, ideal for FTTH applications to improve efficiency and reduce costs.
| Product Name | KP53SCAPC Field Assembly Fiber Optic Connector |
| Pre-embedded Fiber Process | Pre-embedded fiber, factory polished, with built-in refractive index matching gel |
| Product Length | 53 mm |
| Compatible Cable | 2.0×3.0 mm, 2.0×1.6 mm drop cable |
| Compatible Fiber | G.657A1/A2/B3 fiber, core/cladding: 125/250 μm |
| Operating Temperature | -25 ℃ ~ +75 ℃ |
| (IL) Insertion Loss | Avg ≤0.3 dB, Max ≤0.5 dB |
| (RL) Return Loss | UPC ≥45 dB, APC ≥50 dB |
| Tensile Strength | ≥30 N |
| Mechanical Durability | 500 matings |
| Re-assembly Times | ≥3 times |
| Assembly Time | ≤2 minutes |
| Application | FTTH (Fiber to the Home) |
