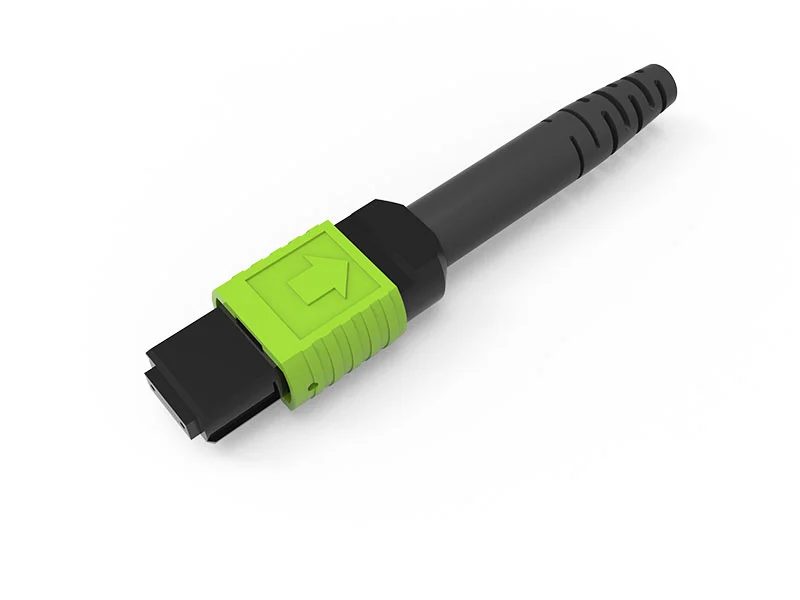

Designed for Φ2.0mm OM5 wideband multimode tight buffered fiber, this 8-core standard-loss MPO connector adopts exclusive green housing and directional latch for OM5 identification with standardized end-face polishing. Developed for 40G/100G/400G transceiver port interconnection in next-generation data center and fully compatible with SWDM4 solution, it realizes 150m@100G and 100m@400G long-distance transmission. As standalone connector component for active module and cabinet port assembly, stable consistent optical performance shortens equipment matching cycle and supports reliable OM5 wideband multimode network deployment.
| Fiber Count | 8 fibers, suitable for Φ2.0mm OM5 tight buffered fiber |
| Matching Fiber | OM5 Wideband Multimode Fiber |
| Loss Class | Standard Loss polishing grade |
| End Face Type | UPC polish |
| Typical Insertion Loss | ≤0.35dB |
| Typical Return Loss | ≥55dB |
| Shell Color | Industry standard green for OM5 marking |
| Application Distance | Max 150m(100G), Max 100m(400G under SWDM4) |
| Pin Type | Male / Female optional pin configuration |
| Operating Temperature | -40℃ ~ +70℃ |
| Compliance Standard | Conforms to TIA-604-5, IEC61300, ISO/IEC11801, matching mainstream international MPO connector industry specifications |
