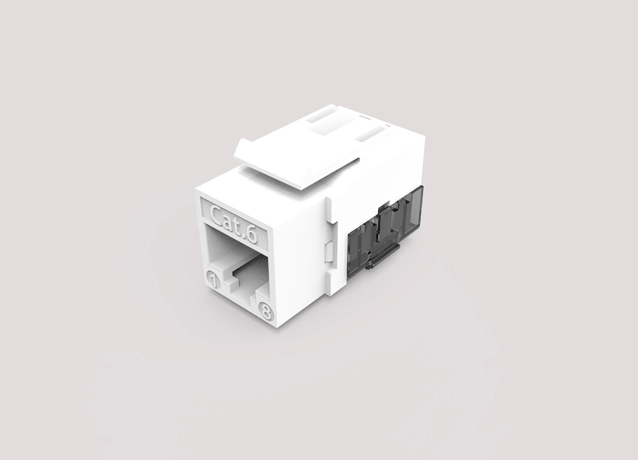

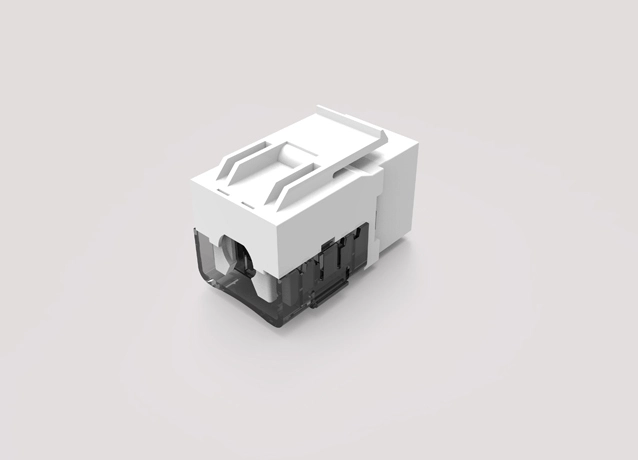

Designed with 90° termination structure, this Cat6 UTP keystone jack adopts gold-plated three-prong contact. It complies with ISO/IEC11801 & ANSI/TIA-568-B.2 cabling standards and passes full electrical tests including NEXT, FEXT, insertion loss and return loss, supporting up to 550MHz bandwidth for stable 10Gbps Ethernet transmission. Featuring convenient termination for fast on-site wiring and standard keystone footprint, it is widely deployed for workstation outlet connection to improve cabling stability and simplify maintenance work.
The use of high-strength ABS material ensures the reliability of IDC wiring.
The unique semi transparent IDC dust cover has a detachable structure, making it convenient for rework, maintenance, and disassembly.
IDC's two PIN pairs are close together, with a unique branching design between the two PINs.
The wiring stickers on IDC clearly provide T568A/B wiring methods, making wiring more convenient.
Suitable for single core wire with a diameter of 26AWG (0.404mm) -23AWG (0.574mm).
Unique PCB circuit board line pair balance design, reduces interference, and has high margin.
The IDC spring is made of phosphorus bronze with good elasticity and wear resistance, with a surface nickel plating of 50 μ '' Solder foot spray 100 μ ''.
| Category Grade | Cat6 Unshielded UTP |
| Installation Angle | 90° vertical termination design |
| Rated Bandwidth | Up to 550MHz |
| Transmission Standard | Fully support 10 Gigabit Ethernet |
| Contact Material | Phosphor bronze with 50μ" gold plating |
| Compatible Wire | 22~24AWG solid UTP copper cable |
| Housing Material | High-impact flame-retardant PC plastic |
| Operating Temperature | -20℃ ~ +70℃ |
| Mounting Size | Universal standard Keystone cutout dimension |
| Compliance Standard | Conforms to ANSI/TIA-568-B.2, ISO/IEC 11801, consistent with international mainstream structured cabling specification |
