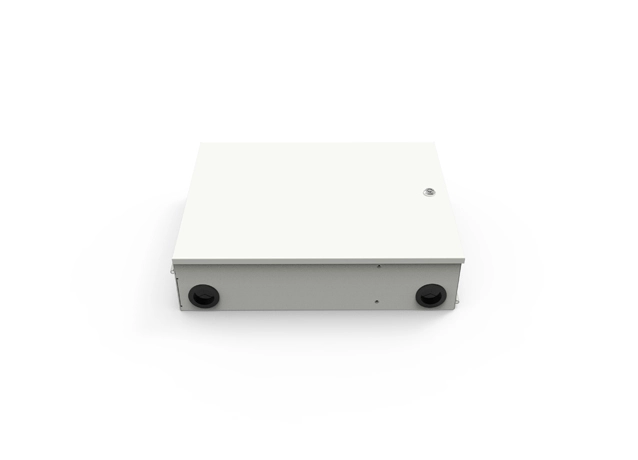

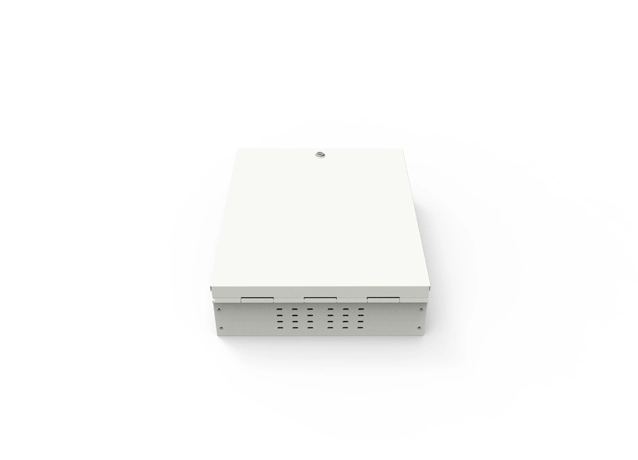

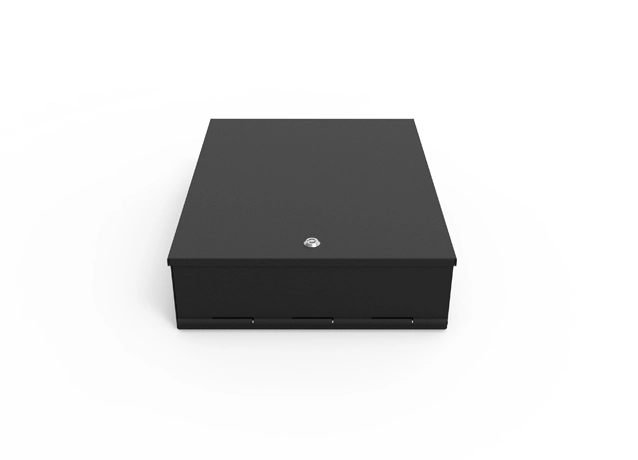

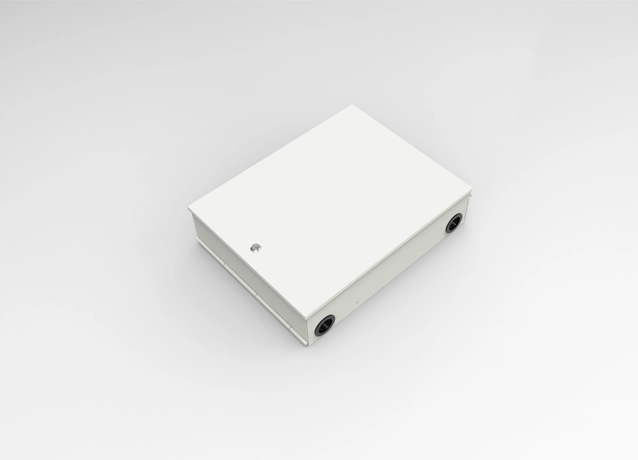

WR1D80 Wall Mounted Fiber Patch Panel is a compact, wall-mounted fiber termination box, supporting up to 80 fibers with built-in splice trays and SC/LC adapter ports, compatible with OM3/OM4 multimode and OS2 single-mode fibers.

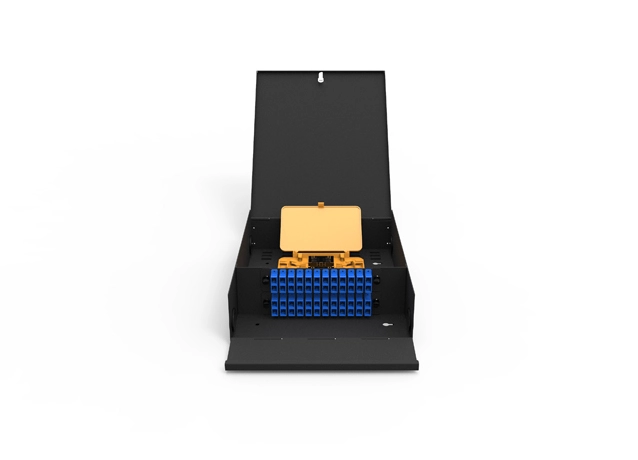

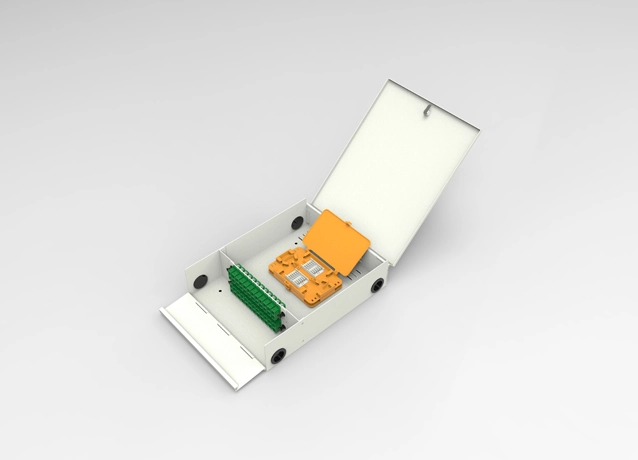

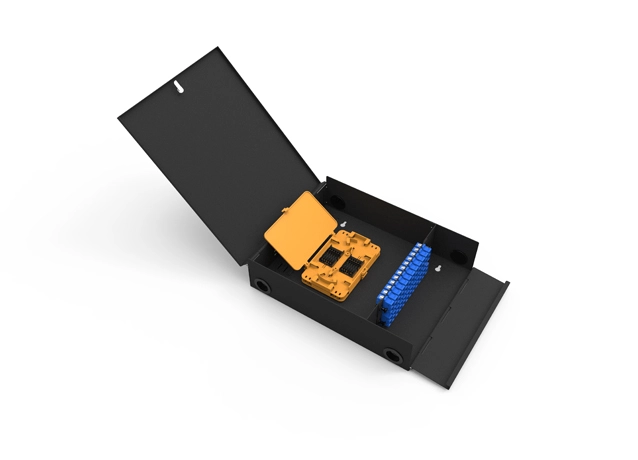

Designed for space-saving wall installation, it provides secure fiber splicing, termination, and cable management in one unit; the hinged cover enables easy access to splice trays and adapters for maintenance, while the rugged housing protects fibers from dust and physical damage.
Ideal for building wiring closets, campus networks, and small office environments where rack space is limited; offers a reliable, low-profile solution for fiber distribution and termination.
| Model | WR1D80 Wall Mounted Fiber Patch Panel |
| Form Factor | Wall-mounted, compact enclosure with hinged cover |
| Max Fiber Capacity | Up to 80 fibers |
| Splice Configuration | Built-in splice trays for on-site termination |
| Port Compatibility | SC/LC simplex/duplex adapters |
| Fiber Compatibility | OM3/OM4 multimode, OS2 single-mode |
| Insertion Loss | ≤0.3dB (SC/LC port) |
| Return Loss | ≥45dB (UPC), ≥60dB (APC) |
| Construction | Rugged metal housing, flame-retardant internal components (UL94 V-0) |
| Compliance & Environment | Compliant with TIA-568-C.3 / IEC 61754-4 / IEC 61300; |
| Operating temperature | -10℃ ~ +60℃ |
