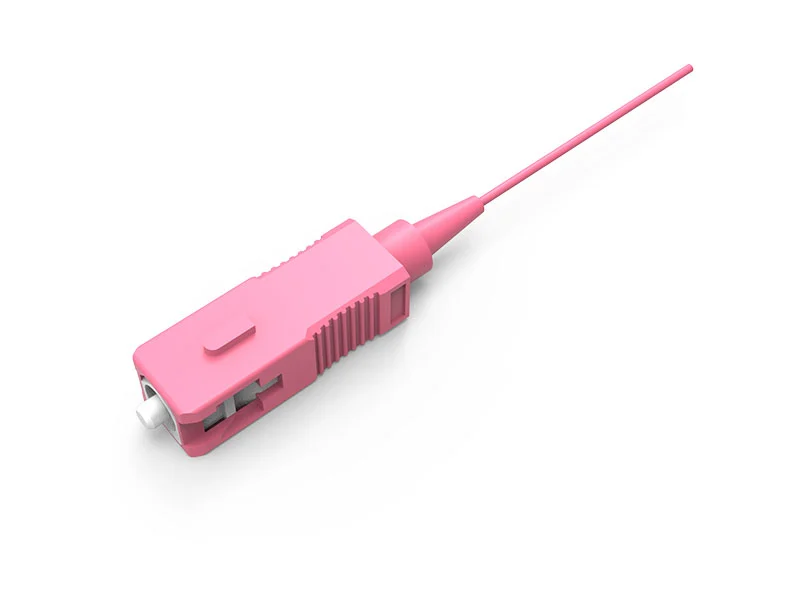

SC 0.9mm OM4 multimode fiber connector for 50/125μm OM4 0.9mm tight-buffered fiber. PC polished with 100% 3D end-face inspection for precise performance.
It supports stable 10Gbps transmission and is compatible with 40/100Gbps high-speed networks. Standard SC interface and compact 0.9mm design enable easy cabling. Full 3D inspection guarantees low IL, high RL and excellent mating durability for long-term reliability.
Suitable for data centers, enterprise LANs, FTTH and high-speed broadband, meeting high-bandwidth demands while cutting inventory and maintenance costs.
Connector Type | SC 0.9mm OM4 Multi-mode Fiber Connector |
Fiber Type | OM4 50/125µm multi-mode fiber, 0.9mm tight-buffered |
End-face Geometry Type | Physical Contact (PC) polished |
Insertion Loss | ≤ 0.3 dB (Typ. ≤ 0.2 dB) |
Return Loss | ≥ 25 dB (Multi-mode) |
Supported Transmission Rate | 10Gbps stable transmission, compatible with 40/100Gbps networks |
Mechanical Durability | ≥1000 matings, insertion loss variation ≤ 0.2 dB |
Operating Temperature | -40℃ ~ +85℃ |
3D End-face Geometry Test | Radius of Curvature: 10~25mm Apex Offset: ≤ 50μm Fiber Height: ± 50nm |
Applicable Standards | IEC 61754-4 / Telcordia GR-326-CORE |
